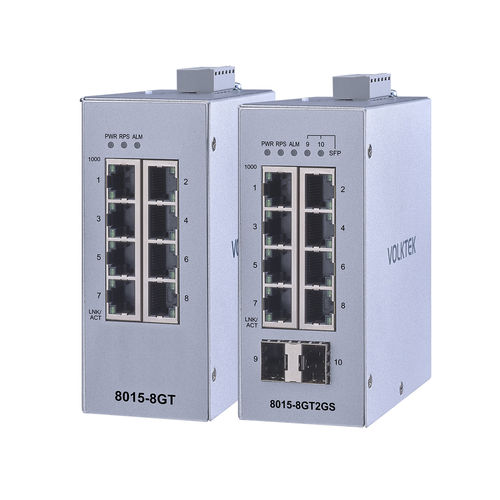

管理型イーサネットスイッチ 8015 series

8 ポート10 ポートDINレール

Product FeaturesThe 8015-8GT-I with 8 10/100/1000 RJ45 ports is a system supporting auxiliary equipment such as multi-axis robots, PLCs, HMIs, and printers in industrial automation.The 8015-8GT2GS-I with 8 10/100/1000 RJ45 ports and 2 FX/GbE SFP uplink ports is for long-distance connections and cascade applications to control centers.Enhanced security with port authentication.Optimizes network performance and ensures sufficient bandwidth by utilizing flow control and QoS.3-step installation wizard completes setup in 3 minutes.Operating temperature range: -40°C~75°C (-40°F~167°F), metal housing.* Maximum operating temperature range by UL: -40°C~70°C (-40°F~158°F)Product OverviewWoodpecker 8015 Series is an industrial switch with 8-port 10/100/1000 RJ45 downlinks and 2-port FX/GbE multi-rate SFP uplinks, designed for communication between controllers and devices in real-time monitoring and automation environments. It is used with industrial equipment such as PLCs, HMIs, and legacy devices. All ports offer auto-negotiation, and devices can be easily aggregated in industrial Ethernet applications using Modbus TCP.Various management tools allow technicians to learn how to use this device in just 3 hours. The wizard shortens installation to 3 steps in 3 minutes. The topology map and dashboard, which are monitoring and management platforms, provide useful real-time information, helping users diagnose networks and troubleshoot without on-site technicians. Rate limiting and QoS enable network optimization.This switch is built with industrial-grade components and enclosed in a high thermal conductivity metal case to protect the device from tools and hazards. It is designed to withstand vibration, shock, and free fall in a temperature range of -40°C to 75°C (-40°F to 167°F), making it suitable for harsh industrial environments. To ensure reliability, redundant power and terminal block alarm relay contacts send alerts in case of power loss without stopping operation.FeaturesLAMUNGAN - Monitoring and management platform: Volktek's embedded platform with a user-friendly interface, wizard, topology map, and dashboard, integrating four tools for deployment, installation, network performance, device monitoring, and network configuration.Wizard - 3-step, 3-minute installation: Helps technicians set up network access, security, and login information quickly, enabling rapid device installation and remote configuration.Topology Map - Smart and interactive network overview: Provides a comprehensive view for OT and IT users, using smart technology to discover third-party devices, interfaces, and link paths with color codes. Customizable icons and backgrounds.Dashboard - Network performance visualization: Allows users to visualize switch CPU performance and data transmission rates, quickly detecting and assisting with device or network issues.Third-party device compatibility and speed adaptability: Multi-rate ports support 10/100/1000 Mbps on copper and 100/1000 Mbps on fiber, adapting to third-party device requirements. Auto-negotiation with legacy devices eliminates the need for additional adapters.Optimized network performance: Utilizes QoS and flow control to prioritize data transmission and improve performance.Power failure protection: Redundant power input and relay output alarm: Designed to connect to two power sources and alarms simultaneously. Automatically switches to backup power and triggers an alarm in case of power failure.Designed to withstand harsh environments: Built with industrial-grade components, tested in-house, and certified by international safety agencies (CE, FCC, ROHS) for reliable operation under harsh conditions. Strong resistance to extreme temperatures (-40°C~75°C / -40°F~167°F) and interference.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX, 100BASE-FX for 8015-8GT2GS-I)IEEE 802.3ab (1000BASE-T)IEEE 802.3z (1000BASE-SX/LX for 8015-8GT2GS-I)IEEE 802.3 Nway Auto-negotiationIEEE 802.3x Flow ControlIEEE 802.3az Energy Efficient Ethernet (EEE)IEEE 802.1AB LLDPIEEE 802.1D STPIEEE 802.1w RSTPIEEE 802.1p Class of ServiceIEEE 802.1Q VLAN TaggingIEEE 802.1X Port AuthenticationInterface:Ports:8015-8GT-I: 8x10/100/1000BASE-T8015-8GT2GS-I: 8x10/100/1000BASE-T & 2x100FX/GbE SFPDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingLED Panel:8015-8GT-I: PWR, RPS, ALM, 1000, LNK/ACT8015-8GT2GS-I: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower:Input Voltage: Primary inputs: 24~48V DC; Redundant inputs: 24~48V DCConnection: Terminal BlockPower Consumption:8015-8GT2GS-I: Max. 11W, 24V DC @ 0.4A8015-8GT-I: Max. 10W, 24V DC @ 0.35AAlarm Relay: One relay output, 1 A @ 24V DCMechanical and Environment:Housing: MetalMounting: DIN-RailOperating Temperature: -40°C~75°C (-40°F ~167°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating/Storage Humidity: 5 to 95% RH (non-condensing)Weight:8015-8GT-I: 500 g (1.21 lb)8015-8GT2GS-I: 550 g (1.10 lb)Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.57 x 3.93 in)ModelDescriptionWoodpecker 8015-8GT-ILite Managed 8 x 10/100/1000 RJ45 SwitchWoodpecker 8015-8GT2GS-ILite Managed 8 x 10/100/1000 RJ45 Switch*Specifications subject to change without prior notice.Key Features / Technical Specifications:8x 10/100/1000 RJ45 ports (8015-8GT-I)8x 10/100/1000 RJ45 ports + 2x FX/GbE SFP uplink ports (8015-8GT2GS-I)Port authentication securityFlow control and QoS3-step, 3-minute installation wizardOperating temperature: -40°C~75°CMetal housing, DIN-Rail mountingRedundant power, alarm relayIndustrial-grade, CE/FCC/ROHS certified
