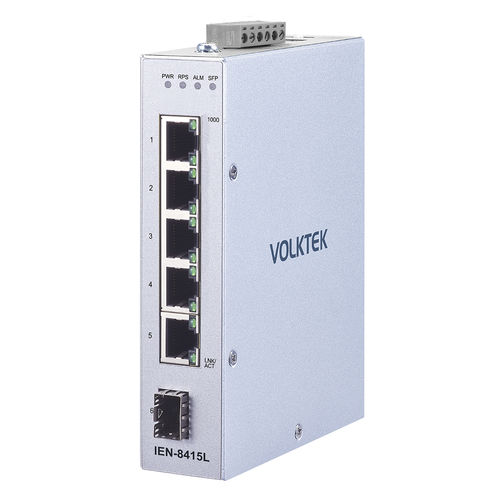

管理型イーサネットスイッチ IEN-8415L

6 ポートDINレールDIP

Product Features5 x 10/100/1000 RJ45 ports and 1 x FX/GbE SFP uplink port (supports long-distance connections)Enhanced security with port authenticationOptimizes network performance and ensures sufficient bandwidth using flow control and QoS3-step installation wizard completes setup in 3 minutesOperating temperature range: -10°C to 60°C (14°F~140°F), metal housingProduct OverviewThe IEN-8415L is a lite managed industrial switch equipped with 5 x 10/100/1000 RJ45 downlink ports and 1 x FX/GbE multi-rate SFP uplink port. Designed for real-time monitoring and communication between controllers and devices in automation settings, this switch connects to industrial devices such as PLCs, HMIs, and legacy devices, offering auto-negotiation on all ports and supporting Modbus TCP. This enables easy integration of all devices in industrial Ethernet applications.The IEN-8415L enables efficient management and quick mastery within just 3 hours, providing ease of use and rapid training. Technicians can quickly understand and apply this device to their work. The wizard function, which enables installation in 3 steps and 3 minutes, offers fast and easy setup, making network deployment efficient. Through topology maps and dashboards, network monitoring and management are enhanced, allowing technicians to grasp network status in real time and perform rapid troubleshooting even when not on-site. The IEN-8415L improves overall network performance and stability by utilizing rate limiting and QoS (Quality of Service) features, enhancing user experience.Constructed with industrial-grade components and enclosed in a metal housing, the IEN-8415L protects the device from tools and hazards. It is designed to withstand vibration, shock, and drops, and operates in a temperature range of -10°C to 60°C (14°F to 140°F), making it suitable for harsh environments without air conditioning. The switch features redundant power and alarm relay contacts on the terminal block, providing immediate alerts in case of power failure, minimizing downtime, and ensuring continuous operation.FeaturesLAMUNGAN - Monitoring and Management Platform: Volktek's embedded monitoring and management platform offers a user-friendly interface, including a wizard, topology map, and dashboard, integrating four tools for device deployment, installation, network performance, device monitoring, and network configuration.Wizard - 3-Step, 3-Minute Installation: The wizard assists technicians in setting up network access, security, and login information, enabling quick installation and remote configuration even for inexperienced users.Topology Map - Visual Network Layout: The topology map allows OT and IT users to visually grasp the network structure and connections, facilitating problem detection and efficient operation. The switch detects third-party devices, interfaces, and link path status using a three-color code (green, orange, red), and users can customize icons and backgrounds.Dashboard - Visualizing Network Performance: The dashboard visualizes the switch's CPU performance and data transfer rates, enabling quick detection and response to device or network issues.Third-Party Device Compatibility and Speed Adaptation: Multi-rate ports support 10/100/1000 Mbps (copper) and 100/1000 Mbps (fiber), adapting to various devices and environments. Auto-negotiation with legacy devices eliminates the need for additional adapters, reducing costs and simplifying management.Network Performance Optimization: Real-time data transmission is crucial for critical systems. With QoS and flow control, the IEN-8415L significantly improves network efficiency and reliability, prioritizing important data and minimizing delays.Power Failure Protection - Redundant Power Input and Relay Output Alarm: Dual power and alarm systems enhance power supply reliability. Automatic switching to backup power and technician notification via alarm ensure rapid response and are especially beneficial for critical infrastructure.Resistance to Harsh Environments: Built with industrial-grade components and tested rigorously, the IEN-8415L meets international safety standards such as CE, FCC, and ROHS. It operates in a wide temperature range (-10°C to 60°C) and is highly resistant to interference, ensuring stable operation in harsh environments.SpecificationsStandards:IEEE 802.3 (10BASE-T)IEEE 802.3u (100BASE-TX, 100BASE-FX)IEEE 802.3ab (1000BASE-T)IEEE 802.3z (1000BASE-SX/LX)IEEE 802.3 Nway Auto-negotiationIEEE 802.3x (Flow Control)IEEE 802.3az (Energy Efficient Ethernet, EEE)IEEE 802.1AB (LLDP)IEEE 802.1D (STP)IEEE 802.1w (RSTP)IEEE 802.1p (Class of Service)IEEE 802.1Q (VLAN tagging)IEEE 802.1X (Port Authentication)Interface:Ports: 5 x 10/100/1000BASE-T (RJ45), 1 x 100FX/GbE SFPDIP Switch: Primary/Redundant Power Voltage Drop Alarm settingLED Panel: PWR, RPS, ALM, SFP, 1000, LNK/ACTPower:Input Voltage: Primary inputs: 20~57V DC, Redundant inputs: 20~57V DCConnection: Terminal BlockPower Consumption: System: 10WAlarm Relay: One relay output, 1A @ 24V DCMechanical and Environment:Housing: MetalMounting: DIN-RailOperating Temperature: -10°C~60°C (14°F~140°F)Storage Temperature: -40°C~85°C (-40°F~185°F)Operating/Storage Humidity: 5 to 95% RH (non-condensing)Weight: 280g (0.62 lb)Dimensions (WxHxD): 31 x 136 x 109.5 mm (1.22 x 5.36 x 4.31 in)Ordering Information:Model: IEN-8415LDescription: Lite Managed 5 x 10/100/1000 RJ45 & 1 x FX/GbE SFP SwitchKey Features / Technical Specifications:5 x 10/100/1000 RJ45 ports1 x FX/GbE SFP uplink portPort authenticationFlow control and QoS3-step, 3-minute installation wizardOperating temperature: -10°C to 60°CMetal housingRedundant power inputAlarm relay outputDIN-rail mountingCE, FCC, ROHS certifiedDimensions: 31 x 136 x 109.5 mmWeight: 280g
