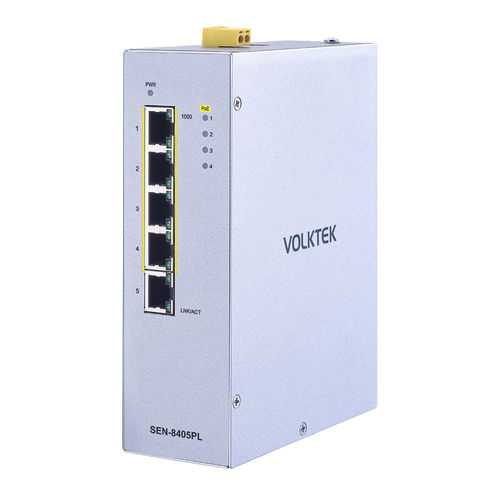

管理型イーサネットスイッチ SEN-8405PL-24V

スマート5 ポートレベル 2

Product Features4 x 10/100/1000 PoE+ ports (up to 30W power supply per port)1 x 10/100/1000 RJ45 port (Gigabit high-speed industrial controller)Optimizes network performance and ensures sufficient bandwidth using flow control and QoS3-step installation wizard completed in 3 minutesWide input voltage range (24V–57V), ideal for factory floors and general surveillance applicationsOperating temperature range: -10°C to 60°C (14°F–140°F), metal housingProduct OverviewThe SEN-8405PL-24V is a lite managed 4-port 10/100/1000 PoE+ downlink and 1-port 10/100/1000 RJ45 downlink industrial switch, providing real-time network monitoring for indoor surveillance and internet access point applications. This PoE+ switch features up to 4 PSE (Power Sourcing Equipment) ports, allowing management of all remote powered devices (PD) via automation functions controlled from a web browser. It supports auto-negotiation on all ports and Modbus TCP for easy aggregation of devices such as HMIs and legacy devices.Various management tools are available for configuration, and technicians can learn to use this equipment in just 3 hours. The wizard shortens installation to 3 steps in 3 minutes. The topology map and dashboard, which are monitoring and management platforms, provide real-time useful information to help users diagnose the network and troubleshoot without always needing on-site technicians. Rate limiting and QoS (Quality of Service) enable network optimization.This switch is built with industrial-grade components and covered in metal to protect the device from tools and hazards. The wide input power range of 24V to 57V allows the device to operate in factory ecosystems and other commercial/residential security applications without the need for additional power outlets. It is designed to withstand vibration, shock, free fall, and temperature ranges from -10°C to 60°C (14°F to 140°F), making it suitable for harsh environments without air conditioning. To ensure reliability, redundant power and terminal block alarm relay contacts guarantee nonstop operation and issue alerts in case of power failure.FunctionsLAMUNGAN - Monitoring and Management PlatformLamungan is Volktek's embedded monitoring and management platform, combining a user-friendly interface with a wizard, topology map, and dashboard to help users achieve more in less time, save resources, and improve efficiency. It integrates four tools related to device deployment and installation, network performance, device monitoring, and network configuration.Wizard - 3-Step Installation in 3 MinutesWhen a new switch is connected, the wizard assists technicians in setting up network access, security, and login information. This allows for quick installation of all devices and continued remote configuration after network connection is established. For users unfamiliar with such devices, the wizard solves many problems.Topology Map - Smart and Interactive Network at a GlanceProvides an overview of the network for easy problem identification and troubleshooting, giving OT and IT users a comprehensive understanding. This Ethernet switch uses smart technology to discover third-party devices, their interfaces, and link path statuses with tri-color codes (green, amber, red). Users can also set up maps with customized icons and background images.Dashboard - Visualization of Network PerformanceThe dashboard allows users to visualize switch CPU performance and data transmission speed with a simple interface, quickly detect device or network issues, and provide rapid support.Remote PD Management from the Control RoomThis device, compliant with PoE+ (IEEE 802.3 af/at) standards, can supply up to 30W/port to all connected PDs, but limits power to only what is needed for device operation, protecting against sudden power spikes. The switch management interface uses PD management functions (such as PD alive check and PoE scheduling) to centrally control remote devices.PD Alive Check - Checks the live active status of devices and restarts them if necessary, reducing costly visits to remote locations and saving valuable time.PD Scheduling - The Ethernet switch schedules the time to supply power to PDs, reducing power consumption and allocating sufficient power to critical applications, saving operational costs.Third-Party Device Compatibility and Speed AdaptabilityThe device's multi-rate ports can transmit data at different Ethernet speeds (10/100/1000 Mbps for copper, 100/1000 Mbps for fiber), adapting to third-party device requirements. When legacy devices are connected, auto-negotiation reduces the need for additional adapters, fitting tight budgets.Network Performance OptimizationReal-time data transmission to control centers and other devices is crucial. With QoS and flow control functions, the switch prioritizes data transmission and improves performance.Power Failure Protection: Redundant Power Input & Relay Output AlarmDesigned to connect to two power sources and alarms simultaneously, ensuring continuous power supply. If the main power fails, the switch automatically uses the backup power and triggers an alarm to notify technicians of the power failure.Withstands Harsh EnvironmentsBuilt with industrial-grade components, tested in-house, and certified by international safety agencies such as CE, FCC, and ROHS for reliable operation under harsh environmental conditions. Its strong resistance to extreme temperatures (-10°C to 60°C / 14°F to 140°F) and interference ensures reliability in tough environments around various machinery.SpecificationsStandards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3af (Power over Ethernet), IEEE 802.3at (Power over Ethernet Plus), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN tagging), IEEE 802.1X (Port Authentication)Interface: 4 x 10/100/1000BASE-T (PoE+ RJ45), 1 x 10/100/1000BASE-T (RJ45), LED Panel: PWR, PoE, 1000, LNK/ACTPower: Input Voltage: Terminal block (2 pins): 24~57V DC, Mini DIN (4 pins): 24~57V DC; Connection: Terminal Block, Mini-DIN; Power Consumption: System: 14W, PoE Power Budget: 120WMechanical and Environment: Housing: Metal; Mounting: DIN-Rail; Operating Temperature: -10°C~60°C (14°F~140°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 465 g (1.03 lb); Dimension (WxHxD): 50 x 160 x 120 mm (1.97 x 6.36 x 4.72 in)Ordering Information: Model: SEN-8405PL-24V; Description: Lite Managed 4 x 10/100/1000 PoE+ & 1 x 10/100/1000 RJ45 Switch
