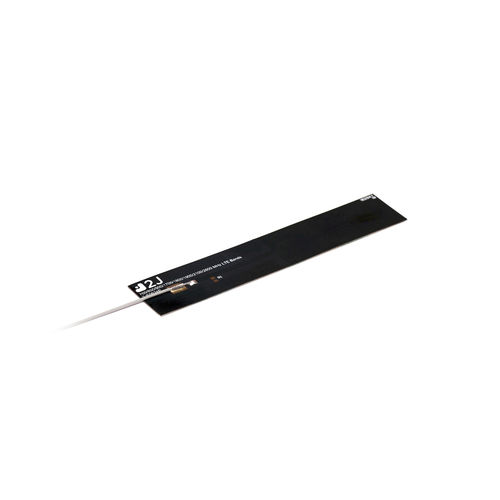

4G LTE antenna 2JF0624P
2GinternalPCB

4G LTE antenna - 2JF0624P - 2J Antennas - 2G / internal / PCB
4G LTE antenna - 2JF0624P - 2J Antennas - 2G / internal / PCB
4G LTE antenna - 2JF0624P - 2J Antennas - 2G / internal / PCB - image - 2
4G LTE antenna - 2JF0624P - 2J Antennas - 2G / internal / PCB - image - 3
Add to favorites
Compare this product

Characteristics

Network
4G LTE, 2G
Type
internal, PCB
Other characteristics
high-performance
Frequency

Max.: 2,700 Hz

Min.: 698 Hz

Gain

1 dB, 2.5 dB, 3.4 dB

Description

Mounting - Adhesive Mount Flexible Dimensions (mm) - 110.4 x 20.8 x 0.2 Operating temperature - -40 °C to +85 °C Note - Flexi Embedded Antenna Standards - 2G,3G and 4G Frequency - 698-960, 1710-2170, 2500-2700 VSWR - ~1.6:1, ~2.0:1, ~2.8:1 Efficiency (%) - ~59, ~68, ~59 Peak Gain (dBi) - ~1.0, ~3.4, ~2.5 - 50 Polarisation - Linear Max. Input Power (W) - 25
