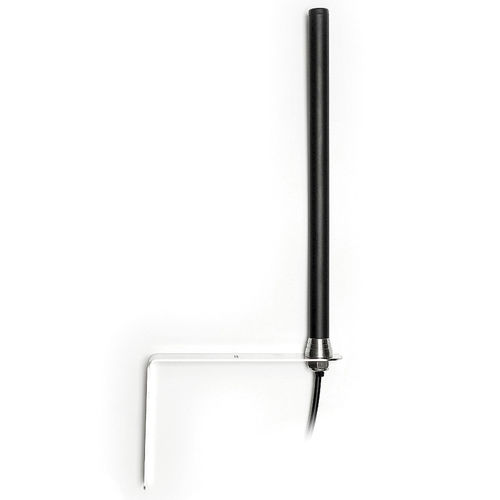

4G LTE antenna 2J2124B-B05H
2GexternalIP67

4G LTE antenna - 2J2124B-B05H - 2J Antennas - 2G / external / IP67
4G LTE antenna - 2J2124B-B05H - 2J Antennas - 2G / external / IP67
4G LTE antenna - 2J2124B-B05H - 2J Antennas - 2G / external / IP67 - image - 2
Add to favorites
Compare this product

Characteristics

Network
4G LTE, 2G
Type
external
Other characteristics
IP67, high-performance, linear polarized
Frequency

Max.: 2,700 MHz

Min.: 698 MHz

Gain

0.4 dB, 2.2 dB, 3 dB

Description

Mounting - Wall Mount Dimensions (mm) - 325 × 36 × 155 (220 × Ø 16) Operating temperature - -40 °C to +85 °C Standards - 2G,3G and 4G Frequency - 698-960, 1710-2170, 2500-2700 VSWR - ~2.4:1, ~1.4:1, ~1.5:1 Efficiency (%) - ~54.7, ~56.8, ~48.8 Peak Gain (dBi) - ~2.2, ~3.0, ~0.4 Impedance (Ohm) - 50 Polarisation - Linear Max. Input Power (W) - 25
