GPS antenna 2J4301MPGFx
GLONASSGALILEOexternal

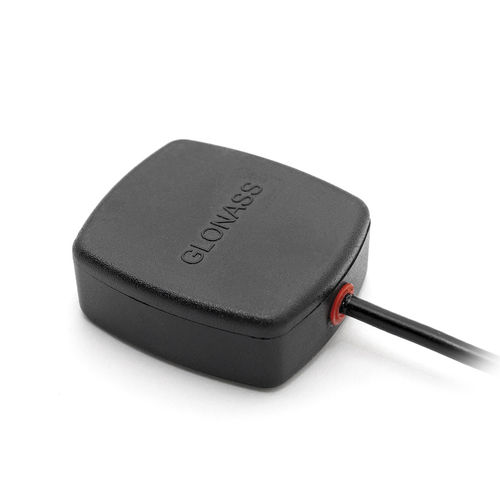

GPS antenna - 2J4301MPGFx - 2J Antennas - GLONASS / GALILEO / external
GPS antenna - 2J4301MPGFx - 2J Antennas - GLONASS / GALILEO / external
GPS antenna - 2J4301MPGFx - 2J Antennas - GLONASS / GALILEO / external - image - 2
GPS antenna - 2J4301MPGFx - 2J Antennas - GLONASS / GALILEO / external - image - 3
Add to favorites
Compare this product

Characteristics

Network
GPS, GLONASS, GALILEO
Type
external
Other characteristics
IP67, active
Frequency

1,575.42 MHz, 1,598 MHz, 1,606 MHz

Gain

23 dB, 24 dB

Description

Mounting - Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount Dimensions (mm) - 38 x 34 x 13.5/14.5 Operating temperature - -40 °C to +85 °C Standards - GPS/QZSS/Galileo/GLONASS Frequency - 1575.42, 1598-1606 VSWR - <1.2:1 Efficiency (%) - ~65, ~68 Impedance (Ohm) - 50 Polarisation - RHCP Active Gain (dB) - 23 @ 3V, 24 @ 5V Saw Filter Type - Post-Filter Voltage (V) - 2.7 - 5.5 Current (mA) - 15 - 25 Power Consumption (mW) - 138 Max
