GPS antenna 2JCP2540101Ga
GLONASSGALILEOinternal

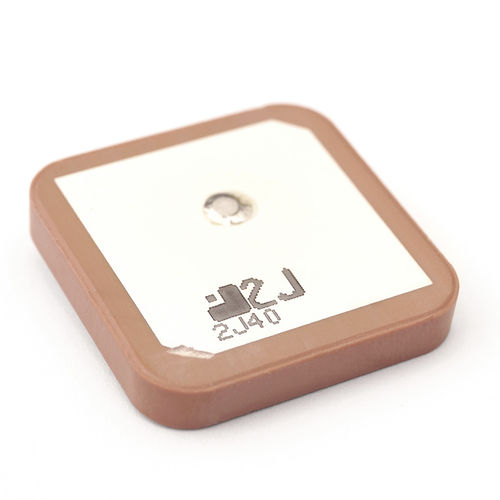

GPS antenna - 2JCP2540101Ga - 2J Antennas - GLONASS / GALILEO / internal
GPS antenna - 2JCP2540101Ga - 2J Antennas - GLONASS / GALILEO / internal
Add to favorites
Compare this product

Characteristics

Network
GPS, GLONASS, GALILEO
Type
internal
Other characteristics
passive, high-gain, ceramic
Frequency

Min.: 1,575.4 Hz

Max.: 1,606 Hz

Gain

3.6 dB, 3.9 dB

Description

Mounting - Thru-Hole Mount Ceramic Dimensions (mm) - 25 x 25 x 4 Operating temperature - -40 °C to +85 °C Note - Specification only for the 2JDK0201Ga-C104N Development Kit Standards - GPS/GLONASS/QZSS/Galileo Frequency - 1575.42, 1598-1606 Passive Gain (dBi) - ~3.6, ~3.9 Efficiency (%) - ~65, ~68 - 50 Radiation Pattern - Hemispherical
