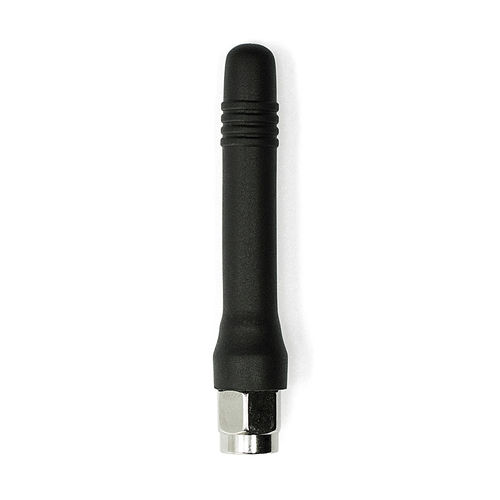

WiFi antenna 2J0102-2.4-C115N2.4 GHzISM bandexternal
Add to favorites
Compare this product
Characteristics
- Network
- WiFi, 2.4 GHz, ISM band
- Type
- external, low-profile
- Frequency
Max.: 2,490 MHz
Min.: 2,410 MHz
- Gain
3.6 dB
Description
Mounting - Connector Mount
Dimensions (mm) - Ø 9.5 × 56
Operating temperature - -40 °C to +85 °C
Standards - WiFi, BT, ZigBee, ISM
Frequency - 2410-2490
VSWR - ~2.2:1
Efficiency (%) - ~68
Peak Gain (dBi) - ~3.6
Impedance (Ohm) - 50
Polarisation - Linear
Max. Input Power (W) - 25
