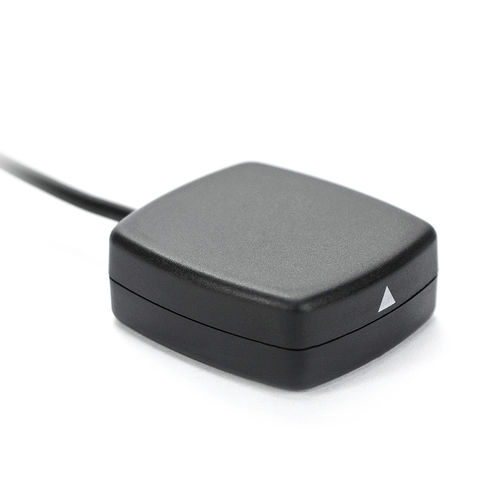

GPS antenna 2J4D01MPGF GLONASSGALILEOexternal
Add to favorites
Compare this product
Characteristics
- Network
- GPS, GLONASS, GALILEO
- Type
- external
- Other characteristics
- IP67, active
- Frequency
1,575.42 MHz, 1,598 MHz, 1,606 MHz
- Gain
28 dB
Description
Mounting - Adhesive Mount, Magnetic Mount, Magnetic/Adhesive Mount
Dimensions (mm) - 41 x 34 x 13.5/14.5
Operating temperature - -40 °C to +85 °C
Standards - GPS/QZSS/Galileo/GLONASS
Frequency - 1575.42, 1598-1606
VSWR - <=1.4:1
Impedance (Ohm) - 50
Polarisation - RHCP
Active Gain (dB) - 28 @ 2.7 V
Voltage (V) - 1.5 - 3.6
Current (mA) - 9 Typ
Power Consumption (mW) - 24.3 Typ
Saw Filter Type - Pre-Filter
ESD Protection (kV) - 2
