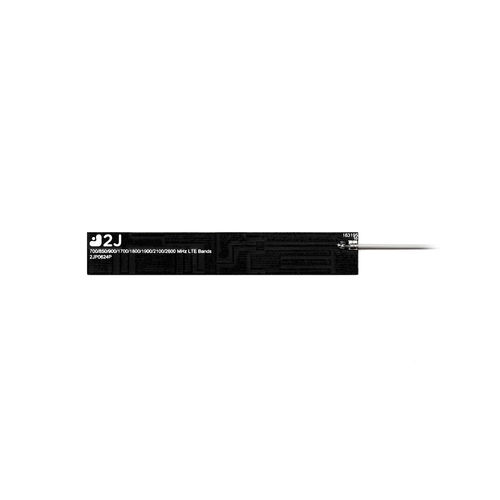

4G LTE antenna 2JP0624P
2Ginternalhigh-performance

4G LTE antenna - 2JP0624P - 2J Antennas - 2G / internal / high-performance
4G LTE antenna - 2JP0624P - 2J Antennas - 2G / internal / high-performance
4G LTE antenna - 2JP0624P - 2J Antennas - 2G / internal / high-performance - image - 2
4G LTE antenna - 2JP0624P - 2J Antennas - 2G / internal / high-performance - image - 3
Add to favorites
Compare this product

Characteristics

Network
4G LTE, 2G
Type
internal
Other characteristics
high-performance
Frequency

Max.: 2,700 Hz

Min.: 698 Hz

Gain

0.3 dB, 1.5 dB, 2.8 dB

Description

Mounting - Adhesive Mount Rigid Dimensions (mm) - 89.7 x 14.1 x 0.8 Operating temperature - -40 °C to +85 °C Standards - 2G,3G and 4G Frequency - 698-960, 1710-2170, 2500-2700 VSWR - ~1.5:1, ~1.8:1, ~2.1:1 Efficiency (%) - ~45, ~48, ~48 Peak Gain (dBi) - ~0.3, ~1.5, ~2.8 - 50 Polarisation - Linear Max. Input Power (W) - 25
