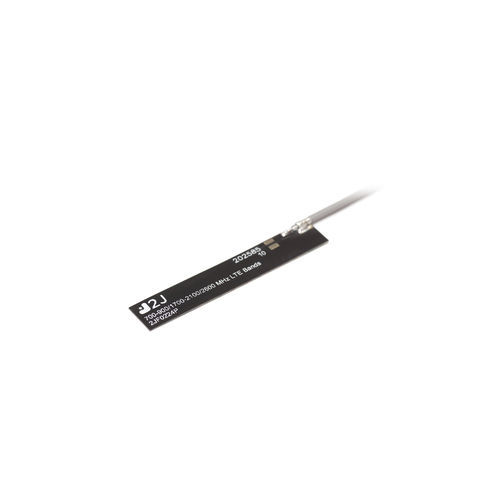

4G LTE antenna 2JF0224P 2GPCBlinear polarized
Add to favorites
Compare this product
Characteristics
- Network
- 4G LTE, 2G
- Type
- PCB
- Other characteristics
- linear polarized
- Frequency
Max.: 2,700 MHz
Min.: 698 MHz
- Gain
0.1 dB, 1.4 dB, 1.8 dB
Description
Mounting - Adhesive Mount Flexible
Dimensions (mm) - 40.0 × 7.0 × 0.15
Operating temperature - -40 °C to +85 °C
Note - Flexi Embedded Antenna
Standards - 2G,3G and 4G
Frequency - 698-960, 1710-2170, 2500-2700
VSWR - ~4.0:1, ~3.9:1, ~3.3:1
Efficiency (%) - ~40.0, ~46.1, ~53.8
Peak Gain (dBi) - ~0.1, ~1.4, ~1.8
Impedance (Ohm) - 50
Polarisation - Linear
Max. Input Power (W) - 25
