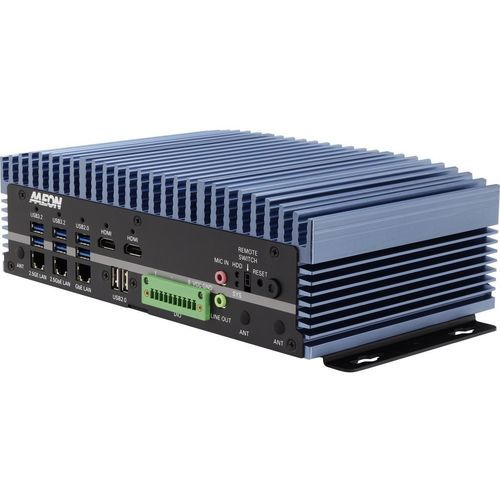

Box PC BOXER-6648-ARS

embeddedIntel® Core™ Ultra2.5 GbE

Overview

A compact, fanless embedded Box PC designed for high-performance industrial automation, edge AI and embedded computing. Built on the Intel® Core™ Ultra Processors (Series 2) platform, it integrates Intel® Xe LPG graphics and hardware security to support reliable deployments in constrained or harsh environments.

Key features

• Intel® Core™ Ultra Processors (Series 2)
• Intel® Xe LPG Graphic Engine
• Dual-Channel DDR5 SODIMM x 2, up to 96GB
• HDMI 2.0 x 2
• Intel® Ethernet Controller I226-LM, 2.5GbE LAN x 2
• Intel® Ethernet Controller I219-LM, 1GbE LAN x 1
• Wide range 10V ~ 35V DC input with circuit protection
• Wide operating temperature: -25°C ~ 50°C
• Onboard TPM 2.0
• Supports iAMT (only for A2 SKU)

Optional Accessories

• 1255X00112 — 180W AC to DC Power Adapter
• 170X000799 — Power Cord (US Type)
• 170X000800 — Power Cord (Europe)
• 170X000803 — Power Cord (Japan)

Technical specifications

• Supported chipsets: Intel® H810 and Q870
• Robust industrial I/O suitable for embedded applications
• Integrated data security at BIOS and OS level
• Fanless, compact form factor for deployment in constrained or harsh environments
• Designed for industrial automation and AI-era workloads
