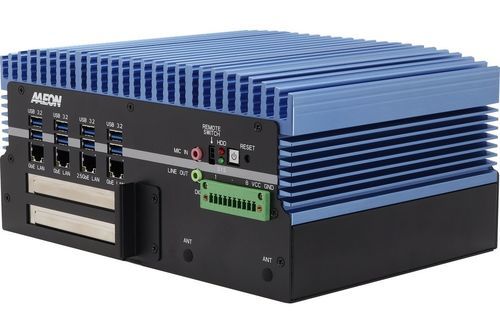

Box PC BOXER-6839-RPL

embedded14th Generation Intel® Core™12th Generation Intel® Core™

Model
BOXER-6839-RPL

Overview
The BOXER-6839-RPL is designed for industrial applications such as factory automation and smart energy grids. It supports up to 65W CPUs from 12th, 13th and 14th Gen Intel® Core™ families and offers extensive I/O and expansion options to simplify system integration and scalability.

Key features

• 14th Gen Intel® Core™ LGA 1700 Socket-Type Processors
• PCIe combinations: PCIe [x4] + PCIe [x1] or PCIe [x4] + PCIe
• Four simultaneous displays: HDMI x2 + DisplayPort (DP) x2
• Operating temperature: -20°C to 50°C
• USB 3.2 Gen 2 (Type-A) x8
• Two 2.5" SATA drive bays with RAID 0/1 support

Specifications

• Product type: Fanless embedded controller / Box PC
• Model: BOXER-6839-RPL
• CPU socket: LGA 1700 (supports 12th, 13th, 14th Gen Intel® Core™ processors)
• CPU TDP support: up to 65W CPUs
• Expansion: PCIe combinations - PCIe [x4] + PCIe [x1] or PCIe [x4] + PCIe
• Display outputs: HDMI x2 and DisplayPort (DP) x2 for four simultaneous displays
• USB: USB 3.2 Gen 2 (Type-A) x8
• Storage: Two 2.5" SATA drive bays, RAID 0/1 supported
• Operating temperature range: -20°C to 50°C
