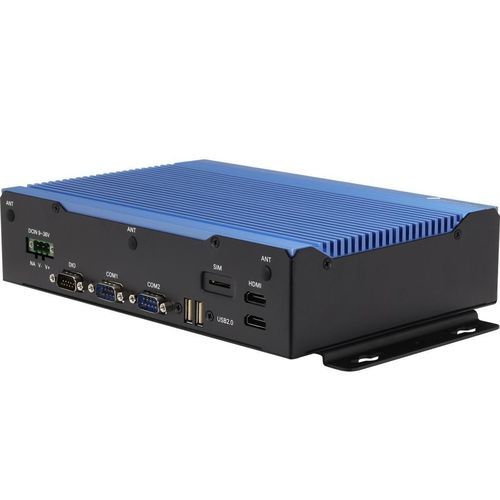

Box PC BOXER-6649-RAP

embeddedIntel® Core i513th Generation Intel® Core™

The BOXER-6649-RAP is a fanless compact embedded computer designed for smart vision, security and surveillance applications. It integrates 13th Gen Intel® Core™ CPUs, Intel® Iris® Xe graphics, dual-channel DDR5 memory support and multiple PoE-capable 2.5GbE LAN ports in a slim, rugged enclosure with wide operating temperature tolerance.

Key features

• 13th Generation Intel® Core™ i7/i5/i3 Processors (28W)
• Intel® Iris® Xe Graphics
• Dual-Channel DDR5 SODIMM, up to 96GB
• Dual HDMI outputs
• Five 2.5GbE LAN ports; four ports support IEEE 802.3at PSE (PoE PSE x4)
• 9V–36V DC input with protection circuit
• Wide operating temperature: -25°C to 60°C
• Onboard TPM 2.0

Optional accessories / packing items (part number table on page):

• 1255X00102 — 180W AC to DC Power Adapter
• 170X000799 — Power Cord (US Type)
• 170X001024 — Power Cord (Europe)
• 170X000803 — Power Cord (Japan)

Characteristics / Specifications:

• Model: BOXER-6649-RAP
• Form factor / enclosure: Fanless compact box; dimensions 242 mm × 167 mm × 56 mm
• Processor: 13th Gen Intel® Core™ series (i7 / i5 / i3), 28W variants
• Graphics: Integrated Intel® Iris® Xe
• Memory: Dual-channel DDR5 SODIMM support, up to 96 GB total
• Display outputs: Dual HDMI
• Networking: Five 2.5GbE LAN ports; IEEE 802.3at PSE on four ports (PoE capable)
• Power input: Wide-range 9V–36V DC input with onboard protection circuitry; optional 180W AC→DC adapter
• Security: Onboard TPM 2.0
• Operating temperature: -25°C to 60°C
• Target applications: Smart vision, security, safety, surveillance and other space-constrained embedded deployments
• Design highlights: Fanless cooling for reliable operation in challenging environments; compact footprint for easy integration
