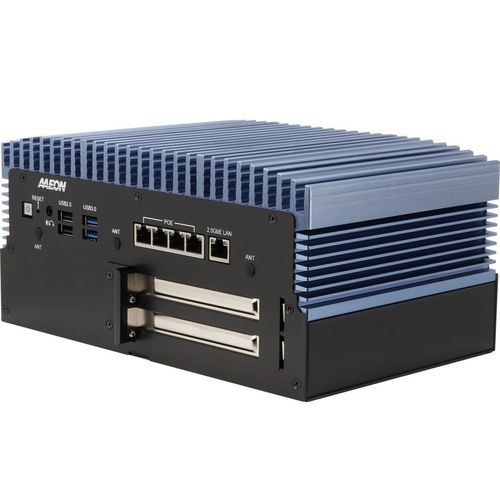

Box PC BOXER-6801-RAP

embeddedwall-mountedDIN rail

Overview
The BOXER-6801-RAP is a fanless, expandable embedded box PC designed for industrial and edge computing applications, powered by 13th Gen Intel® Core™ i7/i5/i3 mobile processors. It delivers high-performance processing, multiple network interfaces including PoE-capable ports, DDR5 memory support, wide operating temperature range, and onboard TPM 2.0.

Key features

• 13th Gen Intel® Core™ i7/i5/i3 mobile processors
• DDR5 SODIMM x 2, up to 96GB
• 2.5 GbE LAN x 5 (4 with PoE functionality, total shared PoE budget 60W)
• PCIe x1 slot x 1 and PCI slot x 1
• 9V–36V DC input with protection circuitry
• Wide operating temperature: -20°C to 60°C
• Onboard TPM 2.0

Optional accessories

• 170X001024 - Power Cord (European Type)
• 170X000799 - Power Cord (US Type)
• 170X000803 - Power Cord (Japanese Type)
• 1255X00102 - 19V 180W Power Adapter

Technical specifications

• Model: BOXER-6801-RAP
• Processor: 13th Gen Intel® Core™ i7/i5/i3 (mobile)
• Memory: 2 x DDR5 SODIMM, up to 96GB
• Networking: Five 2.5 GbE LAN ports (4 supporting PoE, total shared PoE budget 60W)
• Expansion: 1 x PCIe x1 slot, 1 x PCI slot
• Power input: 9V–36V DC input with protection circuitry
• Operating temperature: -20°C to 60°C (wide-temperature operation)
• Security: Onboard TPM 2.0
