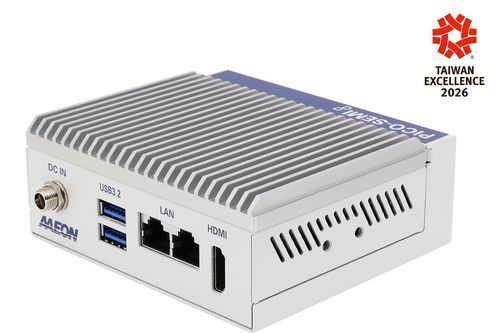

Edge AI PC PICO-MTU4-SEMI

embeddedIntel® Core™ UltraLPDDR5

The PICO-MTU4-SEMI is a compact, fanless AI mini PC based on the Intel® Core™ Ultra 5 platform, engineered for low-power edge AI deployments and integration into robotics and smart equipment. It features onboard LPDDR5 memory up to 32GB, an integrated NPU for hardware AI acceleration, dual LAN and multiple expansion interfaces for scalable, low-latency inferencing.

Key features

• Intel® Core™ Ultra 5 Processor SoC with integrated NPU
• Onboard LPDDR5 memory, configurable up to 32GB
• 2.5GbE Intel® Ethernet Controller I226 + 1GbE Intel® Ethernet Connection I219
• HDMI 1.4 output
• M.2 2280 M-Key x1 (PCIe 4.0 [x4] / SATA)
• M.2 2230 E-Key x1 (PCIe 4.0 [x1] + USB 2.0)
• USB 3.2 Gen 2 x2
• RS-232/422/485 x2 (optional via cable)
• TPM and 4-bit GPIO (optional)

Overview
The system offloads inferencing to a dedicated NPU inside the Intel® Core™ Ultra foundation, reducing CPU/GPU load and lowering system power consumption. Designed for ErP compliance (S5 mode < 0.5W), the unit's compact fanless form factor simplifies integration into larger equipment or use as the central compute module for AGVs, AMRs, drones and other compact robotics.

Optional Accessories

• 1702031802 - Power Cord (US Type) - Qty: 1
• 1702031803 - Power Cord (Europe Type) - Qty: 1
• 170203180E - Power Cord (Japan) - Qty: 1
• 1255X00063 - AC/DC Adapter 100-240V, 150W, 12V/12.5A (C14 DC JACK w/ Lock 180D) - Qty: 1
• 170X001114 - GPIO cable (150mm) - Qty: 1
• 170X001117 - Dual COM port cable (120mm) - Qty: 1
• PICO-SEMI-WMT1 - PICO-MTU4-SEMI Wallmount bracket kit - Qty: 1
• PICO-SEMI-DIN01 - Din rail kit 25mm x 48.3mm - Qty: 1

Specifications

• Processor: Intel® Core™ Ultra 5 SoC with integrated NPU (for on-device AI inferencing)
• Memory: Onboard LPDDR5, configurable up to 32GB
• Storage expansion: M.2 2280 M-Key (PCIe 4.0 x4 / SATA) for NVMe or SATA storage
• Wireless expansion: M.2 2230 E-Key (PCIe 4.0 x1 + USB 2.0) for wireless modules
• Networking: 2.5GbE Intel® I226 + 1GbE Intel® I219 (dual LAN), IEEE 1588 PTP support
• Video: HDMI 1.4 output
• USB: Dual USB 3.2 Gen 2 ports
• Serial I/O: Optional RS-232/422/485 x2 (via accessory cables)
• Security / GPIO: TPM (optional), 4-bit GPIO (optional)
• Power / Compliance: ErP-compliant, S5 mode < 0.5W
• Dimensions: 108 mm x 95 mm x 43 mm
• Weight: ~600 g
• Cooling: Fanless design for minimal maintenance
• Use cases: Designed for compact, low-power AI at the edge—suitable for robotics (AGV/AMR), drones, and embedded equipment integration
