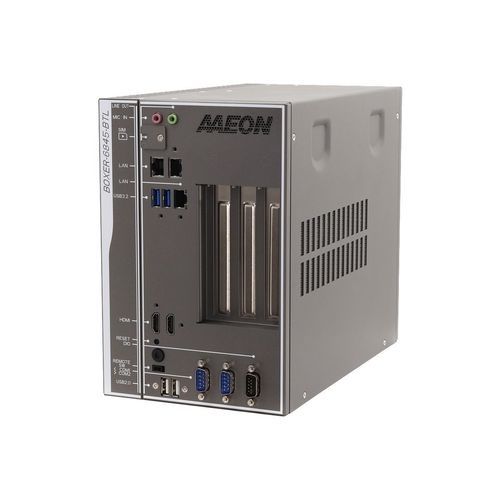

Box PC BOXER-6845-BTL series

embeddedIntel® Core™RS-232

Product overview
BOXER-6845-BTL: Compact embedded computer with Intel® Core™ Series 2
The BOXER-6845-BTL integrates Intel® Core™ Series 2 processors with modular GPU support and flexible NVMe/SATA storage to deliver high compute density in a 150 mm × 270 mm × 225 mm chassis. Designed for edge AI and industrial deployments, it offers fan-assisted and fanless variants for confined environments.

Key highlights

• Intel® Core™ processors Series 2, up to 65W TDP
• Compact dimensions: 150 mm × 270 mm × 225 mm (≈43% smaller than predecessor)
• DDR5 SODIMM ×2, up to 64 GB, ECC supported
• Storage: 2× SATA drive bays; 2× M.2 2280 M-Key (RAID 0/1); 2× M.2 3052 B-Key
• Wide 12–24 V DC input range with protection circuit
• Operating temperature range: -20°C to 45°C
• Riser expansion options: PCIe x16 + PCIe x4 or PCIe x4 + PCI x1
• Supports NVIDIA RTX PRO 4000 Blackwell SFF graphics
• TPM 2.0 onboard

Design and cooling
The compact chassis is optimized for cabinets, mobile robots and tight enclosures. Choose fan-assisted or fanless configurations depending on CPU/GPU load and ambient conditions to ensure effective thermal management in constrained spaces.

Applications
Edge AI inference, industrial robotics, compact industrial servers and embedded systems requiring high compute density and modular GPU/expansion capability.

Technical specifications

• Processor family: Intel® Core™ processors Series 2 (Bartlett Lake), TDP up to 65W
• Dimensions: 150 mm × 270 mm × 225 mm
• Memory: DDR5 SODIMM ×2, up to 64 GB, ECC support
• Storage: 2× SATA bays; 2× M.2 2280 M-Key (RAID 0/1); 2× M.2 3052 B-Key
• Expansion: Riser options – PCIe x16 + PCIe x4 or PCIe x4 + PCI x1
• GPU: NVIDIA RTX PRO 4000 Blackwell SFF supported
• Security: TPM 2.0 onboard
• Power input: 12–24 V DC with protection circuitry
• Operating temperature: -20°C to 45°C
