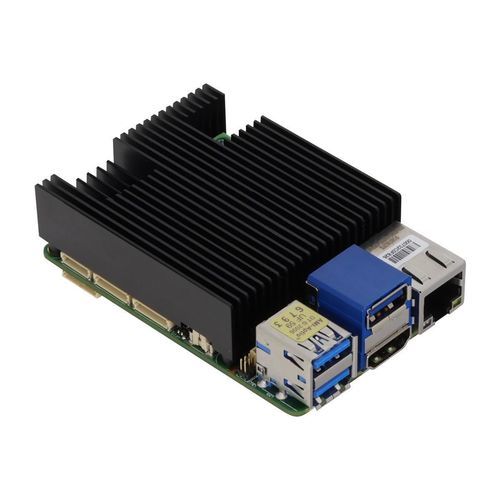

ATX single-board computer UP-TWL02N150-A10-0864

Intel® Processor N150Intel® Processor N-seriesIntel® Processor N250

Overview
The UP TWLS is an ultra‑slim, Wi‑Fi ready single‑board computer (SBC) designed for wireless edge applications and space‑constrained embedded systems. It integrates Intel® N‑series (Twin Lake) processor options in a compact 85 mm x 56 mm form factor, and provides flexible industrial I/O and a wide operating temperature range for reliable edge deployment.

Key features

• Intel® Processor N‑series (Twin Lake) options: Intel® Core™ 3 Processor N355, Intel® Processor N250, Intel® Processor N150
• Onboard LPDDR5 memory, up to 8 GB
• Onboard eMMC storage, up to 128 GB
• 1 x Gigabit Ethernet (GbE)
• 1 x HDMI 1.4b
• 3 x USB 3.2 Type‑A
• 1 x M.2 2230 E‑Key slot (for Wi‑Fi modules)
• 10‑pin RS‑232/422/485 wafer for industrial serial communication
• Configurable wafers offering I2C, SPI and 8‑bit GPIO
• 12 V DC‑in, 5 A power input
• TPM 2.0

Applications
Designed for wireless edge computing and IoT deployments such as smart sensors, data loggers, compact automation controllers, and edge AI nodes where a slim footprint, wireless capability and flexible I/O are required. Suitable for space‑constrained embedded systems in industrial and commercial environments.

Technical specifications

• Model: UP TWLS
• CPU: Intel® Processor N‑series (Twin Lake) — options include Core™ 3 N355, N250, N150
• Form factor / Dimensions: Ultra‑slim SBC, 85 mm x 56 mm
• Memory: Onboard LPDDR5, up to 8 GB
• Storage: Onboard eMMC, up to 128 GB
• Wireless: M.2 2230 E‑Key slot for Wi‑Fi module
• Networking: 1 x Gigabit Ethernet (GbE)
• Display: 1 x HDMI 1.4b
• USB: 3 x USB 3.2 Type‑A
• Expansion: M.2 2230 E‑Key x1
• Serial / Industrial I/O: 10‑pin RS‑232/422/485 wafer
• Configurable I/O: I2C, SPI, 8‑bit GPIO via configurable wafers
• Security: TPM 2.0
• Power input: 12 V DC‑in, 5 A
• Operating temperature: -20 °C to 70 °C
• Typical use cases: Edge AI, industrial IoT, wireless sensor nodes, compact automation controllers
• Additional: Free Edge AI Toolkit available for accelerating AI projects on UP platforms (toolkit mention only, no links included)
