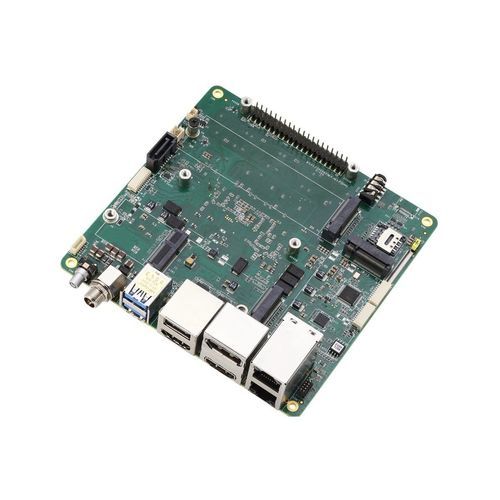

Intel® Core™ Ultra single-board computer UP Xtreme ARL

SATAM.2Windows 10

The UP Xtreme ARL (UPX-ARL) redefines what's possible as it takes its place as the most powerful developer board ever. Bringing Intel® Core™ Ultra 200H Series Processors (formerly Arrow Lake) to a board stacked with all the features needed to build elite AI-driven applications across AMR and advanced robotics, the UP Xtreme ARL is uniquely positioned to help professional developers harness the endless possibilities that lay ahead. With Intel® Core Ultra 200H Series Processors offering monumental advancements through both a power-optimized core microarchitecture and Intel® DL Boost-accelerated integrated Intel® Arc™ 140T GPU, the UP Xtreme ARL can achieve up to 97 TOPs of AI performance for the execution of multiple concurrent compute and edge inference tasks. Meanwhile, its Intel® AI Boost NPU offers extensive software framework support for streamlined model development. The UP Xtreme ARL’s I/O is ideally suited to powering the next generation of robotics and AMR solutions. With a foundation capable of handling parallel robotics workloads, developers are free to fully utilize the board’s trademark 40-pin GPIO, dual RS-232/422/485 pin headers, multiple high-speed USB ports, and MIPI camera support to integrate sophisticated peripherals to bring autonomous industrial robotic solutions to life. Despite its compact 120.35mm x 122.5mm form factor, the UP Xtreme ARL is built to withstand the demands of industrial deployment. Equipped with a 9V to 36V power input range with a lockable DC jack, the board is protected from both power source variability and the vibration encountered in industrial settings. - Intel® Core™ Ultra 5/7 Processors - Onboard Dual Channel LPDDR5 6400, up to 64GB - Up to 4 Simultaneous Displays - M.2 2280 M-Key x 2 - M.2 3052 B-Key x 1 (5G) - M.2 2230 E-Key x 1 (Wi-Fi/BT) - 2.5GbE x 1, GbE x 1 - USB 3.2 Gen 2 (Type A x 2) - Onboard TPM 2.0 - Wide DC Input 9-36V Optional Accessories: - 1255X00071: (TF)AC/DC Adapter.Input 100V~240V.output DC 19V.120W.6.32A.DC JACK w/Lock.FSP.FSP120- ABAN3/9NA1208548 - 170203180J: Power Cord for UK - 170X000799: Power Cord for USA - 170X000800: Power Cord for EU - 170X000815: Power Cord for China - 170X000806: Power Cord for Taiwan - 170X000803: Power Cord for Japan - 170X000810: Power Cord for South Korea - 170X000805: Power Cord for Switzerland - 1702150155: Power Cable.15P SATA(F).2P 2.0mm, Housing(PH).15cm - 1700070200: SATA CABLE.7P 180D(F) w/lock.to 7P 90D(F) w/o, lock SATA.20cm - 9651210000: Wireless LAN Kit M.2 2230 802.11ac/a/b/g/n + BT5.2,2.4G/5G/6G,with 2 sets of cable & antenna (Intel AX210)
