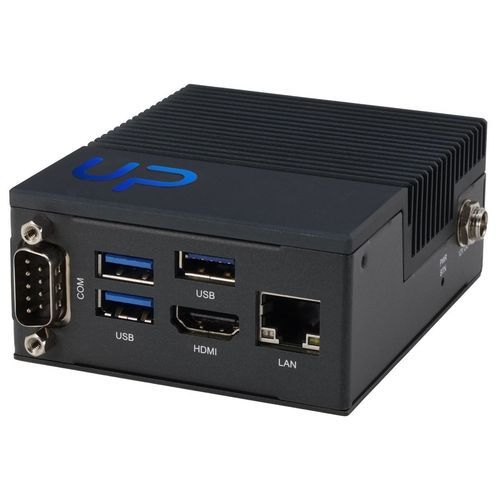

EDGE PC UP TWLS EDGE

DIN railVESA mountingIntel® Processor N-series

The UP TWLS Edge is a slim, fanless industrial edge PC designed for smart automation and industrial control. It pairs Intel® N-series SoC compute with M.2 Wi‑Fi capability and a compact, easy-to-deploy form factor suitable for DIN-rail or VESA installations in production environments.

Key features

• Intel® N-series processors (Twin Lake family)
• Onboard LPDDR5 memory, up to 8 GB
• Onboard eMMC storage, up to 64 GB
• 1x 1 GbE LAN
• HDMI 1.4b x1
• USB 3.2 Gen 2 (Type-A) x3
• Serial: RS-232/422/485 (COM x1)
• GPIO x8
• 12V DC-in, 5A
• TPM 2.0
• M.2 2230 E-Key for Wi‑Fi/Bluetooth modules

Optional accessories

• 1255X00032 — (TF) AC/DC Adapter. Input AC 100–240V. Output DC 12V. MAX 72W. 6.0A. 180D. W/ LOCK. EDAC. EA10681U(120)
• 170X000799 — (TF) Power Cord. 3P. 125V. 10A. 180D. USA. 1.8M. I-SHENG. SP305B/IS-14N SVT 18/3 60C CT-12 Black
• 170X000800 — (TF) Power Cord. 3P. 250V. 10A. VDE. 1.8M. I-SHENG. SP23/IS-14N H05VV-F 3G 0.75 CT-12 Black
• 170X000815 — (TF) Power Cord. 3P. 250V. 10A. 180D. CHINA. 1.8M. I-SHENG. SP506A/IS-14N RVV 300/500V 3X0.75 CT-12 Black
• 170X000806 — (TF) Power Cord. 3P. 125V. 7A. 1.8M. I-SHENG. U4NCB3T6B1218002. SP305B/IS-14N VCTF. Black. BSMI
• 170X000803 — (TF) Power Cord. 3P. 125V/7A. PSE Certificate. 1.8M. I-SHENG. U4NCB3P6C1218002. SP305B/IS-14N VCTF 0.75/3 Black 1.8M
• 170X000810 — (TF) Power Cord. 3P. 250V. 16A. Korea. 1.8M. I-SHENG. SP23/IS-14N H05VV-F 3G 0.75 CT-12 Black
• 170X000805 — (TF) Power Cord. 3P. 250V. 10A. SWISS. 1.8M. I-SHENG. SP-027C/IS-14N H05VV-F 3G 0.75mm CT-12 Black
• 9651210000 — Wireless LAN Kit M.2 2230 802.11ax/ac/a/b/g/n + BT5.2, 2.4G/5G/6G, with 2 sets of cable & antenna (Intel AX210)
• 9651885200 — Wireless LAN Kit M.2 2230 802.11ax/ac/a/b/g/n + BT5.2, 2T2R, with 2 sets of cable & antenna (Enli, ENL-8852CE)
• 170010015G — (TF) USB Cable. 10P 1.0mm Housing. USB A(F). 15cm
• UP-ASL02VESAKIT-A10-0001 — VESA KIT for UP-EDGE-ASL02
• UP-DRKIT-A10-0001 — DIN Rail KIT for UP Series

Technical specifications

• Model: UP-EDGE-TWL02 (UP TWLS EDGE)
• CPU options: Intel® Core™ 3 Processor N355, Intel® Processor N250, or Intel® Processor N150 (Twin Lake family)
• Memory & storage: onboard LPDDR5 up to 8 GB; onboard eMMC up to 64 GB
• I/O: 1x 1 GbE LAN, HDMI 1.4b, USB 3.2 Gen 2 x3, GPIO x8, COM (RS-232/422/485) x1
• Wireless: M.2 2230 E-Key slot for Wi‑Fi/BT modules
• Power & security: 12V DC-in (5A), TPM 2.0
• Cooling & enclosure: slim fanless industrial design
• Mounting: DIN rail or VESA mount options
• Target applications: industrial automation and edge-control scenarios; interfaces with PLCs, sensors and robotic systems
