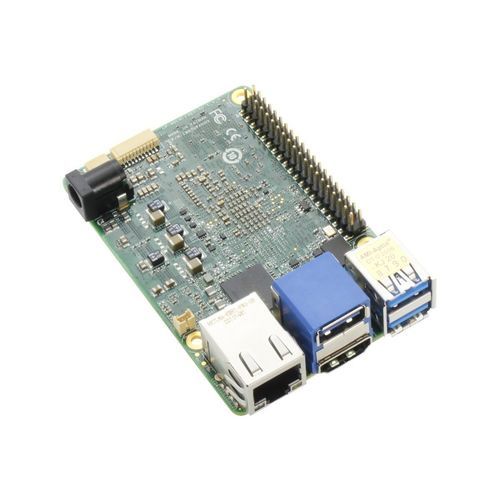

Intel® Processor N-series single-board computer UP TWL

Intel® Processor N150Intel® Processor N250Intel® Core™ 3 Processor N355

Overview
UP TWL — Raspberry Pi-compatible industrial-grade single-board computer designed for edge IoT, automation and embedded applications. Measuring 85mm x 56mm, it integrates Intel® Processor N-series (N355, N250, N150) performance with a 40-pin GPIO header (I2C, SPI, UART) for HATs and custom interfaces. With three USB 3.2 Gen 2 ports, HDMI 1.4b, 1GbE and an extended operating range (-20°C to 70°C), the UP TWL fits compact, cost-sensitive industrial and maker deployments.

Key features

• Intel® Processor N-series (N355, N250, N150)
• Onboard LPDDR5 memory up to 8GB
• Onboard eMMC storage up to 64GB
• 1 x 1Gigabit LAN
• HDMI 1.4b
• 3 x USB 3.2 Gen 2 (Type-A); 2 x 10-pin USB 2.0 (one can be UART)
• 40-pin GPIO header (I2C, SPI, UART, HAT compatible)
• TPM 2.0 security
• 12V DC-in, 5A power supply
• Operating temperature -20°C to 70°C

Optional accessories
Part number | Description
125530060L | Power adapter 100–240V AC to 12V DC, 5A (60W)
UP-ADLN01-COOLER-A01 | Heatsink with cooler

Notes
Free Edge AI Toolkit available to accelerate object detection, benchmarking and AI model conversion on UP platforms.

Technical specifications

• Model: UP TWL
• CPU options: Intel® Core™ 3 Processor N355, Intel® Processor N250, N150 (Twin Lake)
• Memory: Onboard LPDDR5, up to 8GB
• Storage: Onboard eMMC, up to 64GB
• Network: 1 x 1Gigabit LAN
• Display: HDMI 1.4b x1
• USB: 3 x USB 3.2 Gen 2 Type-A; 2 x 10-pin USB 2.0 (one can be UART)
• GPIO: 1 x 40-pin header (I2C, SPI, UART, HAT compatible)
• Security: TPM 2.0
• Power: 12V DC-in, 5A
• Dimensions: 85mm x 56mm
• Operating temperature: -20°C to 70°C
• Compatibility: Raspberry Pi-compatible footprint
• Optional accessories: 125530060L (power adapter), UP-ADLN01-COOLER-A01 (heatsink with cooler)
