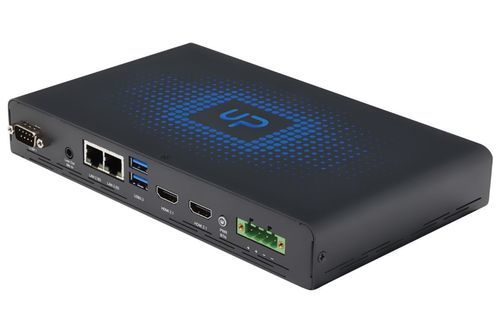

Industrial gateway UP XTREME PTL EDGE AIR

IoT EdgesecurityIoT

Overview
The UP Xtreme PTL Edge Air is a fanless Edge AI system that replaces conventional fan cooling with Frore Systems’ AirJet® solid‑state active cooling. It delivers Intel® Core™ Ultra Series 3 computing in a platform that is 35% thinner, 43% lighter and operates below 21 dBA, making it suitable for space‑constrained and low‑vibration deployments such as kiosks, AMR housings and mobile healthcare units.

Key features

• Intel® Core™ Ultra Series 3 processors
• DDR5 SODIMM ×2, dual channel, up to 128GB, up to 7200 MT/s
• Up to 4 simultaneous displays
• M.2 2280 M‑Key ×2 for storage
• M.2 2230 E‑Key ×1 (Wi‑Fi/BT)
• 2.5GbE ×2
• USB 3.2 Gen 2 (Type‑A) ×2; USB4.0 (Type‑C) ×2
• Wide DC input 19–36V
• Onboard TPM 2.0

Solid‑State Cooling for a Slim Design
AirJet® uses ultrasonic membrane technology to generate high‑speed pulsating airflow for active heat dissipation without mechanical fans or large heatsinks. This enables a thinner, lighter enclosure with cleanroom‑grade dust resistance, ideal for compact industrial and robotic installations.

Vibration‑Free for Precise Motion Control
By eliminating fan‑induced vibration and operating under 21 dBA, the system provides a stable platform for robotic controllers, actuators, sensors and cameras. Reduced mass lowers torque on moving joints in robots and AMRs, improving precision for motion control and sensing.

Edge AI Performance
Powered by Intel® Core™ Ultra Series 3, the UP Xtreme PTL Edge Air supports demanding CPU/GPU/NPU edge AI workloads such as AI vision, VSLAM, 3D LiDAR processing, real‑time perception, localization and robotic control in constrained spaces.

FAQs

• Q: What is the UP Xtreme PTL Edge Air? A: A fanless Edge AI system powered by Intel® Core™ Ultra Series 3 processors using AirJet® solid‑state active cooling.
• Q: Does it use a fan for cooling? A: No. Cooling is provided by AirJet® solid‑state active cooling (no conventional mechanical fan).
• Q: How does AirJet® work? A: AirJet® employs ultrasonic membrane technology to produce pulsating airflow for active heat removal without moving fan parts.
• Q: What applications is it designed for? A: Industrial robotics, AMRs, AI vision, 3D LiDAR and VSLAM where low noise, low vibration, compact size and dust resistance are required.

Specifications

• Model: UP Xtreme PTL Edge Air
• Processor: Intel® Core™ Ultra Series 3
• Memory: DDR5 SODIMM ×2, dual channel, up to 128GB, up to 7200 MT/s
• Graphics/Displays: Up to 4 simultaneous displays
• Storage: M.2 2280 M‑Key ×2
• Wireless expansion: M.2 2230 E‑Key ×1 (Wi‑Fi/BT)
• LAN: 2.5GbE ×2
• USB: USB 3.2 Gen 2 (Type‑A) ×2; USB4.0 (Type‑C) ×2
• Power input: Wide DC 19–36V
• Security: Onboard TPM 2.0
• Cooling: Frore Systems AirJet® solid‑state active cooling (ultrasonic membrane)
• Acoustic noise: <21 dBA (operating)
• Mechanical: 35% thinner and 43% lighter vs. comparable fan‑cooled designs (manufacturer)
• Target applications: Robotics, AMRs, AI vision, 3D LiDAR, VSLAM, edge AI workloads
