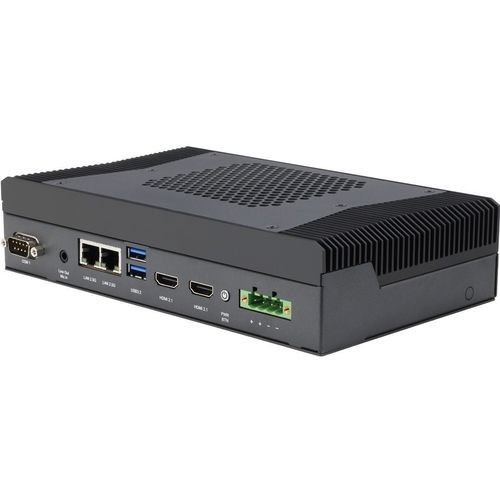

EDGE PC UP XTREME PTL EDGE

Edge AIartificial intelligenceAI

Overview
Powered by the Intel® Core™ Ultra Series 3 platform (Panther Lake), the UP Xtreme PTL Edge integrates Intel Arc GPU architecture and Intel NPU 5.0 to deliver up to 180 TOPs of AI inference performance at the edge. The system is designed for industrial edge AI applications requiring high inference throughput, advanced graphics acceleration and extensive I/O connectivity.

Key features

• Intel® Core™ Ultra Series 3 processors
• DDR5‑6400, Dual Channel SODIMM x2, up to 128 GB
• Support for up to 4 simultaneous displays (two HDMI 2.1, two DP 2.1 via USB4)
• M.2 2280 M‑Key x2 for NVMe storage
• M.2 2230 E‑Key x1 for Wi‑Fi/BT
• 2.5GbE x2 for high‑throughput LAN
• USB 3.2 Gen 2 Type‑A x2, USB4 Type‑C x2
• Onboard TPM 2.0
• Wide DC input 19–36 V for industrial power ranges

Detailed description
The UP Xtreme PTL Edge combines a high‑performance Intel® Core™ Ultra CPU, Intel Arc™ GPU enhancements and an integrated Intel NPU 5.0 to accelerate real‑time AI inference at the edge (up to 180 TOPs). The platform supports flexible sensor and peripheral integration with two USB4 Type‑C ports, two USB Type‑A ports, dual 2.5GbE LAN ports, dual COM ports configurable for RS‑232/422/485, and a 40‑pin GPIO header. Display output options include two HDMI 2.1 and two DisplayPort 2.1 outputs (delivered via USB4), enabling multi‑8K display configurations and hardware‑accelerated media analytics.

Applications
The system is suitable for industrial edge AI workloads such as computer vision, video analytics, robotics, automated inspection and other real‑time inference applications that require high throughput, multiple displays and robust industrial I/O.

Technical specifications

• Model: UP Xtreme PTL Edge (UPX-PTL01-SYS)
• Processor: Intel® Core™ Ultra Series 3
• AI: Intel NPU 5.0, up to 180 TOPs
• Graphics: Intel Arc GPU architecture
• Memory: DDR5‑6400, Dual Channel SODIMM x2, up to 128 GB
• Storage: M.2 2280 M‑Key x2
• Wireless: M.2 2230 E‑Key x1 (for Wi‑Fi/BT)
• LAN: 2x 2.5 GbE
• USB: 2x USB4 Type‑C, 2x USB 3.2 Gen 2 Type‑A
• Video outputs: 2x HDMI 2.1, 2x DP 2.1 (via USB4) — up to four simultaneous 8K displays
• Serial / GPIO: Dual COM (RS‑232/422/485), 40‑pin GPIO
• Security: Onboard TPM 2.0
• Power input: Wide DC input 19–36 V
