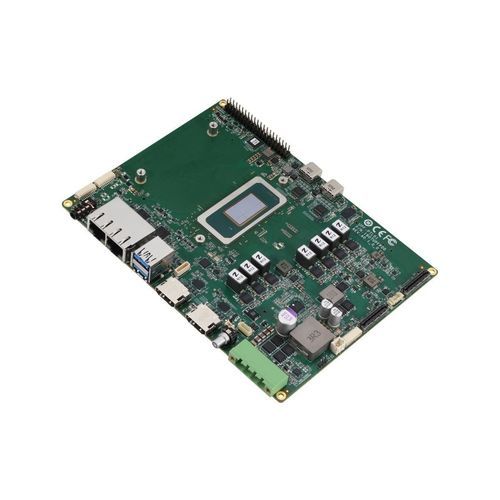

X86 single-board computer UP XTREME PTL

Intel® Core™ UltraM.2 Key MM.2 Key E

Overview
UP Xtreme PTL (UPX-PTL) is a high-performance single board computer designed for AI edge computing, industrial automation, robotics, and machine vision. Powered by Intel® Core™ Ultra processors, UP Xtreme PTL combines advanced CPU, GPU, and NPU acceleration in a compact embedded platform for demanding real-time AI workloads. With support for up to 128GB DDR5-7200 memory, rich industrial I/O, and multi-display capability, UP Xtreme PTL is built to power next-generation AI systems at the edge.

Powered by Intel® Core™ Ultra Series 3

• Supports Intel® Core™ Ultra 5, Intel® Core™ Ultra 7, and Intel® Core™ Ultra X7 processors
• Integrated CPU cores, Intel® Arc™ graphics, and built-in NPU for low-power AI inference and acceleration
• Dual-channel DDR5 7200 MHz SODIMM × 2, up to 128GB system memory

Rich I/O for Industrial Integration

• High-speed USB connectivity (USB 3.2 Gen 2 Type-A × 2, USB4/USB 4.0 Type-C × 2)
• Phoenix connector for reliable wide DC input (19–36V)
• Multiple display outputs (up to 4 simultaneous displays)
• Ethernet for industrial networking (2.5GbE × 2)
• GPIO and serial interfaces
• Expansion support: M.2 2280 M-Key × 2, M.2 2230 E-Key × 1 (Wi‑Fi/BT)
• Onboard TPM 2.0 for enhanced hardware security

Multi-Display and Graphics Performance

• Integrated Intel® Arc™ graphics optimized for graphics-intensive workloads
• Supports multiple high-resolution displays (up to 4 simultaneous displays)
• Typical use cases: digital signage, control room systems, vision inspection, HMI applications

Optimized for AI Edge Computing

• Designed for real-time AI inference and edge deployments
• Target applications: machine vision/computer vision, robotics and autonomous systems, smart factory and industrial automation, retail kiosks and self-service systems, smart city and intelligent transportation
• Combines Intel® Core™ Ultra CPU, Arc GPU and NPU to enable low-latency, efficient edge AI

Why Choose UP Xtreme PTL?

• Latest Intel® Core™ Ultra Series 3 processors
• Integrated CPU, GPU, and NPU architecture
• Up to 128GB DDR5-7200 memory
• Flexible industrial I/O and expansion
• Compact single board computer form factor
• Onboard TPM 2.0
• Designed for AI edge computing, machine vision, robotics and automation

Frequently Asked Questions

• What is UP Xtreme PTL? UP Xtreme PTL is an AI-ready single board computer powered by Intel® Core™ Ultra Series 3 processors (Panther Lake), designed for edge AI, machine vision, robotics, and industrial automation.
• Which processors are available? UP Xtreme PTL is available with Intel® Core™ Ultra 5 processor 325, Intel® Core™ Ultra 7 processor 356H, and Intel® Core™ Ultra X7 processor 358H.
• How much memory does UP Xtreme PTL support? The board supports up to 128GB DDR5-7200 memory through dual-channel SODIMM slots.
• What applications is UP Xtreme PTL best suited for? Ideal for AI inference, computer vision, robotics, smart factory and industrial control, and embedded edge computing applications.

Caractéristiques / spécifications techniques

• Denomination commerciale: UP XTREME PTL
• Processor family: Intel® Core™ Ultra Series 3 (Intel® Core™ Ultra 5 / 7 / X7)
• AI performance: up to 180 TOPs (as indicated)
• Memory: DDR5 SODIMM × 2, Dual Channel, up to 128GB, up to 7200 MT/s
• Storage/expansion: M.2 2280 M-Key × 2
• Wireless: M.2 2230 E-Key × 1 (Wi‑Fi/BT)
• Networking: 2.5GbE × 2
• USB: USB 3.2 Gen 2 (Type-A) × 2, USB 4.0 (Type-C) × 2
• Power input: Wide DC Input 19–36V, Phoenix connector supported
• Security: Onboard TPM 2.0
• Displays: Up to 4 simultaneous displays, Intel® Arc™ graphics
• Target applications: AI edge computing, machine vision, robotics, industrial automation, HMI, digital signage
