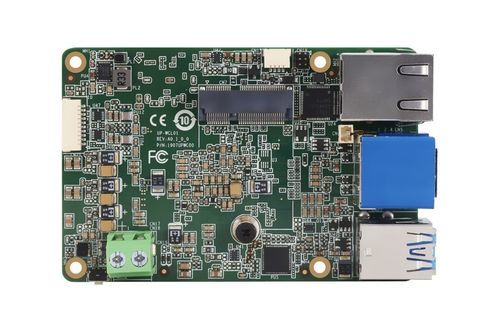

Intel® Core™ single-board computer UP WCL

HDMI2.5 GbEUSB 3.2

Overview
The UP WCL (UP-WCL01) delivers edge AI computing in an ultra-compact 85 mm x 56 mm form factor. Powered by Intel® Core™ Series 3 processors (formerly Wildcat Lake) with up to 40 TOPS AI performance, the UP WCL supports onboard LPDDR5 memory, UFS 3.1 storage and a compact set of I/O suitable for embedded and industrial edge applications.

Key Features

• Intel® Core™ processors (Series 3)
• Onboard LPDDR5 memory, up to 24GB
• Onboard UFS storage, up to 256GB (UFS 3.1)
• 2.5GbE ×1
• HDMI 2.1 (TMDS) ×1
• USB 3.2 Type-A ×3
• 12V DC-in, 5A

Technical specifications

• Model: UP WCL (UP-WCL01)
• Form factor: 85 mm × 56 mm (credit card-sized)
• Processor family: Intel® Core™ Series 3 (Wildcat Lake)
• AI performance: up to 40 TOPS
• Memory: Onboard LPDDR5, up to 24GB
• Storage: Onboard UFS (UFS 3.1), up to 256GB
• Networking: 2.5GbE ×1
• Video output: HDMI 2.1 (TMDS) ×1
• USB: USB 3.2 Type-A ×3
• Power input: 12V DC-in, 5A
