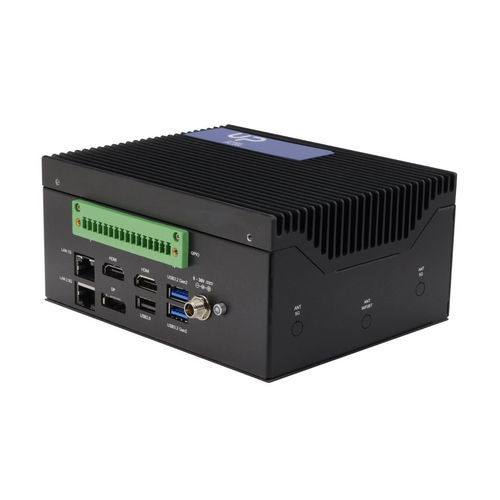

Edge AI PC UP XTREME ARL EDGE

AI Inferencewall-mountedVESA mounting

The UP Xtreme ARL Edge is a rugged, deployment-ready industrial AI edge system built around Intel® Core™ Ultra 200H Series (Core™ Ultra 5/7) processors and designed for demanding industrial AI workloads.

Key features

• Intel® Core™ Ultra 5/7 Processors (200H Series)
• Onboard Dual Channel LPDDR5-6400, up to 64GB
• Up to 3 simultaneous displays supported
• M.2 2280 M-Key x2 (NVMe/SSD)
• M.2 3052 B-Key x1 (5G)
• M.2 2230 E-Key x1 (Wi‑Fi/BT)
• 2.5GbE x1 and GbE x1 (dual Intel®-powered LANs)
• USB 3.2 Gen 2 Type-A x2
• Onboard TPM 2.0
• Wide DC input 9–36V, lockable power connector

Overview
The UP Xtreme ARL Edge is Intel® ESQ-qualified and ships as a ruggedized, ready-to-deploy system optimized for industrial robotics, AGVs/AMRs, factory automation and other mission-critical edge applications. Its enclosure supports fanless operation and is engineered to resist shock, vibration and industrial noise while offering multiple mounting options and a lockable power connector.

I/O and expandability
The system combines modern high-bandwidth networking (dual Intel®-powered LANs including 2.5GbE) with legacy serial COM ports (RS-232/422/485) and the UP 40-pin GPIO for direct, real-time control. It supports multiple M.2 slots for SSDs, 5G and Wi‑Fi/BT modules and includes USB 3.2 Gen 2 ports for high-speed peripheral connectivity.

AI, compute and software support
The platform integrates an Intel® Arc™ 140T discrete GPU together with an Intel® AI Boost NPU, delivering up to 97 TOPS of AI inference capability. It supports common AI frameworks and is compatible with Windows®, Ubuntu and Yocto OS, enabling trained models to run natively on the device's NPU.

Optional accessories

• 1255X00071 — (TF) AC/DC Adapter. Input 100V–240V, output DC 19V, 120W, DC jack w/lock (FSP FSP120- ABAN3/9NA1208548)
• 170203180J — Power Cord for UK
• 170X000799 — Power Cord for USA
• 170X000800 — Power Cord for EU
• 170X000815 — Power Cord for China
• 170X000806 — Power Cord for Taiwan
• 170X000803 — Power Cord for Japan
• 170X000810 — Power Cord for South Korea
• 170X000805 — Power Cord for Switzerland
• 1702150155 — Power Cable. 15P SATA(F).2P 2.0mm, Housing(PH). 15cm
• 1700070200 — SATA cable. 7P 180D(F) w/lock to 7P 90D(F) w/o lock SATA. 20cm
• 9651210000 — Wireless LAN Kit M.2 2230 (Intel AX210) 802.11ac/a/b/g/n + BT5.2, 2.4G/5G/6G, includes 2 sets of cable & antenna
• UPX-M2THERMAL-A10-0002 — M.2 2280 IO-side thermal kit (required when SSD installed)
• UPX-VESAKIT-A10-0001 — VESA/Wallmount kit for compatible UPX-EDGE models

Characteristics / technical specifications

• Model name: UP XTREME ARL EDGE
• Processor: Intel® Core™ Ultra 200H Series (Intel® Core™ Ultra 5/7 options)
• AI performance: Up to 97 TOPS (Intel® AI Boost NPU + Intel® Arc™ 140T discrete GPU)
• Memory: Onboard Dual Channel LPDDR5-6400, up to 64GB
• Storage expansion: M.2 2280 M-Key x2 (NVMe/SSD)
• Wireless expansion: M.2 3052 B-Key x1 (5G), M.2 2230 E-Key x1 (Wi‑Fi/BT)
• Displays: Up to 3 simultaneous displays supported
• LAN: 2.5GbE x1, GbE x1 (dual Intel®-powered LAN ports noted)
• USB: USB 3.2 Gen 2 Type-A x2
• Security: TPM 2.0 onboard
• Power input: Wide DC input 9–36V, lockable power connector
• Operating temperature: Fanless operation across -20°C to 60°C
• Mechanical & reliability: Rugged industrial enclosure designed for shock/vibration and industrial deployment
• OS support: Windows®, Ubuntu, Yocto (native NPU framework support)
• Deployment notes: Additional thermal kit required when installing an SSD or 5G module; SATA cable and SATA power cable required for SATA SSD
