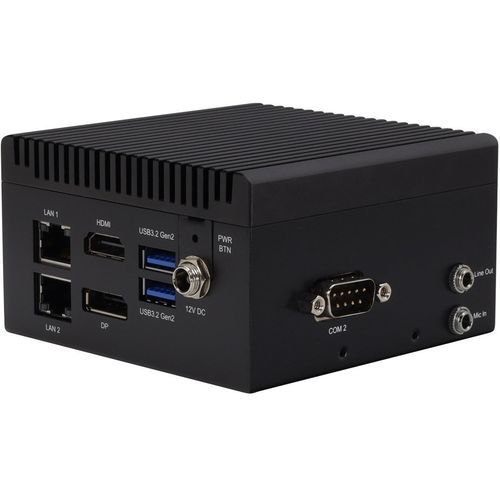

Edge AI PC UP Squared TWL Edge

EDGEembeddedIntel® Processor N-series

Product overview
The UP Squared TWL Edge is an industrial mini PC for edge computing and industrial automation. It provides compact, low‑power compute with industrial I/O and connectivity to modernize legacy control and monitoring systems while supporting Edge AI workflows.

Key features

• Intel® N-series SoC (formerly Twin Lake): options N355 / N250 / N150
• Onboard LPDDR5 memory, configurable up to 16 GB
• Onboard eMMC storage up to 128 GB; expandable via M.2 2280 M-Key
• Dual Gigabit Ethernet (RJ-45 x2)
• USB 3.2 Type-A ×3
• Display outputs: DP 1.2, HDMI 2.0b, eDP 1.3 — supports dual 4K display
• Serial: 2 × RS232/422/485
• M.2 2230 E-Key (Wi‑Fi) ×1; M.2 2280 M-Key (storage/PCIe) ×1
• TPM 2.0 for platform security
• 12 V DC input

Optional accessories (table from product page)

• 1255X00032: (TF) AC/DC Adapter. Input AC 100–240 V. Output DC 12 V. MAX 72 W. 6.0 A. With lock. EDAC. EA10681U(120)
• 170X000799: (TF) Power Cord. 3P. 125 V. 10 A. USA. 1.8 m. I‑SHENG SP305B/IS‑14N
• 170X000800: (TF) Power Cord. 3P. 250 V. 10 A. VDE. 1.8 m. I‑SHENG SP23/IS‑14N
• 170X000815: (TF) Power Cord. 3P. 250 V. 10 A. China. 1.8 m. I‑SHENG SP506A/IS‑14N
• 170X000806: (TF) Power Cord. 3P. 125 V. 7 A. 1.8 m. I‑SHENG U4NCB3T6B1218002
• 170X000803: (TF) Power Cord. 3P. 125 V. 7 A. PSE certified. 1.8 m. I‑SHENG U4NCB3P6C1218002
• 170X000810: (TF) Power Cord. 3P. 250 V. 16 A. Korea. 1.8 m. I‑SHENG
• 170X000805: (TF) Power Cord. 3P. 250 V. 10 A. Switzerland. 1.8 m. I‑SHENG
• 9651210000: Wireless LAN Kit M.2 2230 Intel AX210 (802.11ax/ac/a/b/g/n + BT5.2), with 2 sets of cable & antenna
• 9651885200: Wireless LAN Kit M.2 2230 Enli ENL‑8852CE (802.11ax/ac/a/b/g/n + BT5.2, 2T2R), with 2 sets of cable & antenna
• UPS‑VESAKIT‑A10‑0000: VESA kit for UPS‑GWS / UPS‑EDGE‑EHL / UPS‑EDGE‑ASL / UPS‑EDGE‑TWL

Technical specifications

• Model: UP Squared TWL Edge (UPS‑EDGE‑TWL)
• Intended use: Industrial mini PC for edge computing, industrial automation and legacy system modernization
• CPU options: Intel® Core™ 3 N355, Intel® N250, Intel® N150 (Intel® N‑series)
• Memory: Onboard LPDDR5, configurable up to 16 GB
• Storage: Onboard eMMC up to 128 GB; expandable via M.2 2280 M‑Key
• Network: Dual Gigabit Ethernet (RJ‑45 ×2); optional Wi‑Fi via M.2 2230 WLAN kit (9651210000 / 9651885200)
• USB: 3 × USB 3.2 Type‑A
• Display outputs: DP 1.2, HDMI 2.0b, eDP 1.3 (dual 4K support)
• Serial ports: 2 × RS232/422/485
• Expansion: M.2 2230 E‑Key ×1 (Wi‑Fi), M.2 2280 M‑Key ×1 (storage/PCIe)
• Security: TPM 2.0
• Power input: 12 V DC‑in
• Mounting: VESA kit available (UPS‑VESAKIT‑A10‑0000)
• Additional: Industrial I/O and connectivity for upgrading automation setups; supports Edge AI workflows via UP Edge AI Toolkit (model conversion and benchmarking tools)
