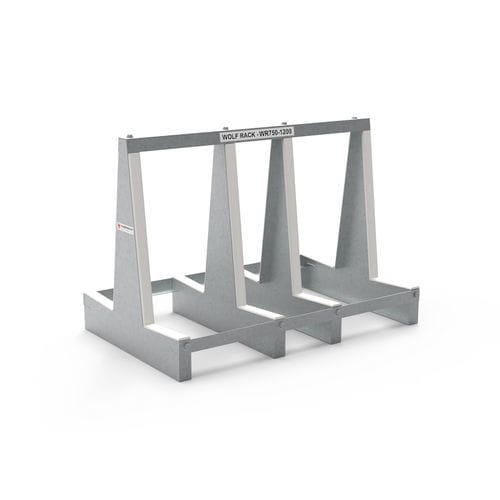

Transport transport rack WR750-1200

for sheet metalwith corner posts

General
The Wolf Rack is an A-frame transport rack manufactured from 2 mm thick sheet metal. The modular A-frames have an open construction. The tops of the individual A-frames contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts. Load bars slot into the base of each A-frame and are fastened by self-aligning bolts screwed into rivet nuts permanently fixed at the A-frame base. This design provides a rigid connection and allows assembly by a single worker using a single tool.

Features

• Modular A-frame transport racks assembled from 2 mm sheet metal sections.
• Frame bearing surfaces are rubber-topped and slope inward; perpendicular support surfaces are cushioned with resilient rubber to protect and retain loaded materials.
• Bearing surfaces are positioned low in the A-frame to minimise lift height for loading/unloading while preserving clearance for forklift forks and pallet jacks.
• Lightweight construction with high strength; easy assembly and disassembly.
• Design allows reduction to a compact empty shipping size by one worker using one tool.
• Simple assembly from few parts to reduce assembly/disassembly time.
• Compacted racks are light enough to be manually loaded into vans or trucks for return shipping.

Options

• Clip-on safety posts to secure large objects (e.g. stone and glass sheets) against the A-frame during internal movement on concrete floors.
• Quick-fit wheels and handles that use the same bolts and tools as frame assembly.
• Multiple Wolf Rack variants available (examples: WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000; Pocket models: WRP1270-1200, WRP1270-1600, WRP1270-2000).

Specifications
WR750-1200:
Metric - Imperial
Working load limit: 1000 kg - 2204 lb
Width of each side: 276 mm - 10.5"
Weight: 37 kg - 81.6 lb

WR750-1600:
Metric - Imperial
Working load limit: 1000 kg - 2204 lb
Width of each side: 276 mm - 10.5"
Weight: 52 kg - 115 lb
Dimension: - -

WR750-2000:
Metric - Imperial
Working load limit: 1200 kg - 2645 lb
Width of each side: 276 mm - 10.5"
Weight: 62 kg - 137 lb
Dimension: - -

Additional information
Patent Pending

Technical specifications

• Product name: Wolf Rack
• Manufacturer / Brand: Aardwolf
• Construction: A-frame structure from 2 mm thick sheet metal
• Assembly: Rivet nuts and self-aligning bolts into U-shaped tie bar; load bars fit into slots at A-frame base
• Protection: Rubber-topped bearing surfaces and cushioned perpendicular support surfaces
• Designed for minimal lift height while allowing forklift and pallet jack access
• Modularity: Modular A-frames for easy assembly/disassembly; reducible to compact shipping size by one worker with one tool
• Options: Clip-on safety posts; quick-fit wheels and handles
• Available variants: WR750-1200, WR1270-1200, WR1270-1600, WR1270-2000, WRP1270-1200, WRP1270-1600, WRP1270-2000
• Patent status: Patent Pending
