Transport transport rack WRP750-1200

transportfor materials handlinghandling

General

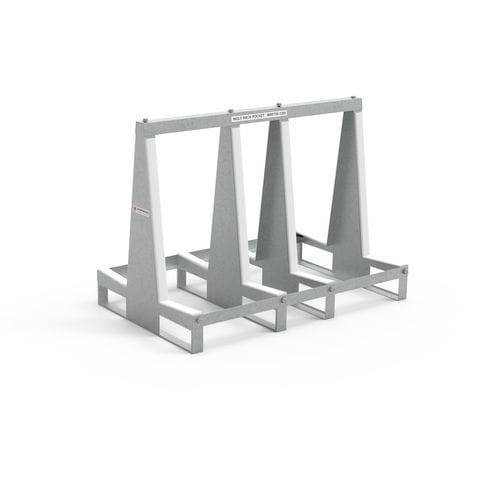

The Wolf Rack Pocket is an A-frame transport rack manufactured from 2 mm sheet metal with an open-frame modular design. The tops of the A-frames house rivet nuts and are bolted to a U-shaped tie bar using self-aligning bolts. Load bars fit into slots at the base of each A-frame and are fastened with self-aligning bolts into rivet nuts permanently fixed at the base, producing a rigid connection. The design enables assembly and disassembly by one worker using a single tool.

Features

• Modular A-frame sections formed from 2 mm sheet metal secured together for adaptable transport configurations.
• Frame bearing surfaces are rubber-topped and slope inward; perpendicular support surfaces are cushioned with resilient rubber to protect and retain loaded materials such as stone or glass sheets.
• Bearing surfaces are positioned low in the A-frame to minimise lift height for loading/unloading while allowing access for forklift forks and pallet jacks.
• Lightweight yet stable construction allows rapid assembly and disassembly.
• Reducible to a compact empty shipping size by one worker with one tool for efficient return transport.
• Assembled from a limited number of parts to reduce handling time and simplify operations.
• Compacted units are light enough to be manhandled into a van or onto a truck.

Options

• Optional clip-on safety posts to press carried objects against the A-frame assembly for secure transport of large sheets on factory floors and construction sites.
• Optional quick-fit wheels and handles using the same bolts and tools used to assemble the frame.
• Aardwolf offers several Wolf Rack variants, including WR1270-1200, WR1270-1600, WR1270-2000 and Wolf Rack Pocket models such as WRP1270-1200, WRP1270-1600, WRP1270-2000.

Specifications
WRP750-1200:
Working load limit: 1000 kg | 2204 lb
Width of each side: 276 mm | 10.8"
Weight: 43 kg | 95 lb
Dimension: - | -

WRP750-1600:
Working load limit: 1000 kg | 2204 lb
Width of each side: 276 mm | 10.8"
Weight: 60 kg | 132 lb
Dimension: - | -

WRP750-2000:
Working load limit: 1200 kg | 2645 lb
Width of each side: 276 mm | 10.8"
Weight: 72 kg | 159 lb
Dimension: - | -

Patent
Patent Pending

Caractéristiques / Spécifications techniques

• Brand: Aardwolf
• Model / Product code: WRP750-1200
• Construction material: 2 mm thick sheet metal (A-frame structure)
• Assembly: rivet nuts at top of A-frames, U-shaped tie bar fixed with self-aligning bolts; load bars fitted into slots at base and fastened by self-aligning bolts into rivet nuts
• Bearing surfaces: rubber-topped, sloping inwards; perpendicular support surfaces cushioned with resilient rubber
• Design: modular A-frames, lightweight, quickly assembled/disassembled, reducible to compact shipping size by one worker using one tool
• Options: clip-on safety posts; quick-fit wheels and handles using same bolts/tools
• Working load limits and weights per variant documented in Specifications section above
• Patent status: Patent Pending
