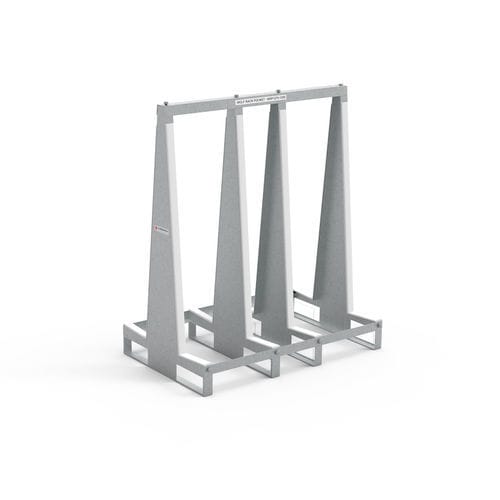

Materials handling transport rack WRP1270-1200

storagefor transport

General
The Wolf Rack Pocket is a modular A-frame transport rack designed for secure handling and storage of large flat materials. Frames are manufactured from 2 mm sheet metal and fastened using rivet nuts, self-aligning bolts and a U-shaped tie bar for rigid assembly. Product Code: WRP1270-1200.

Features

• Modular A-frame construction formed from 2 mm sheet metal for a stable, lightweight structure.
• Rubber-topped bearing surfaces slope inward; perpendicular supports are cushioned with resilient rubber to protect and retain loads such as stone or glass panels.
• Bearing surfaces are positioned low in the A-frame to minimise lift height and permit access for forklift forks and pallet jacks.
• Fast assembly and disassembly with a single tool; components reduce to a compact shipping size for return transport.
• Compact stacks are light enough for manual handling and can be loaded into vans or trucks by one operator.

Options

• Clip-on safety posts to secure large sheets against the A-frame during transport on site or on concrete floors.
• Quick-fit wheels and handles using the same assembly bolts and tools.
• Available in multiple variants: WR1270-1200, WR1270-1600, WR1270-2000 and Wolf Rack Pocket models WRP1270-1200, WRP1270-1600, WRP1270-2000.

Specifications
WRP1270/1200:
Metric / Imperial
Working load limit: 1000 kg / 2204 lb
Width of each side: 230 mm / 9"
Weight: 51 kg / 112 lb
Dimension: L.1200xW.750xH.1625 mm / L.47.2"xW.29.5"xH.64"

WRP1270/1600:
Metric / Imperial
Working load limit: 1000 kg / 2204 lb
Width of each side: 230 mm / 9"
Weight: 70 kg / 154 lb
Dimension: L.1600xW.750xH.1625 mm / L.63"xW.29.5"xH.64"

WRP1270/2000:
Metric / Imperial
Working load limit: 1200 kg / 2645 lb
Width of each side: 230 mm / 9"
Weight: 83 kg / 183 lb
Dimension: L.2000xW.750xH.1625 mm / L.78.7"xW.29.5"xH.64"

Patent
Patent Pending.

Technical specifications

• Model family: Wolf Rack Pocket (WRP series).
• Construction: Modular A-frame made from 2 mm sheet metal.
• Assembly: Rivet nuts, self-aligning bolts and U-shaped tie bar; requires one tool and no specialist skills.
• Protection: Rubber-topped bearing surfaces and resilient rubber on perpendicular supports.
• Forklift compatibility: Bearing position allows forklift fork and pallet jack access.
• Transport and storage: Reducible to compact empty shipping size; compacted units suitable for manual handling.
• Variants and key specs summarised above for WRP1270/1200, WRP1270/1600 and WRP1270/2000.
