Materials handling transport rack WR1270-1200

transportflat sheet metalsteel sheet metal

General

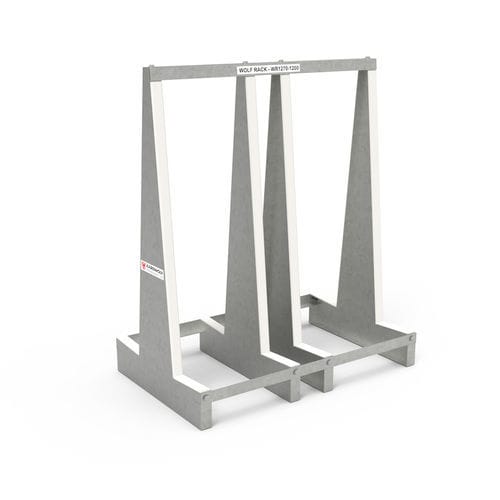

The Wolf Rack is an A-frame transport rack manufactured from 2 mm thick sheet metal. Individual A-frames have an open design; their tops include rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts. Load bars fit into slots at the base of each A-frame and are secured with self-aligning bolts threaded into rivet nuts permanently fixed at the frame base. This results in a rigid connection and enables assembly and disassembly with a single tool by personnel without special skills.

Features

• Modular A-frame panels formed from 2 mm sheet metal, secured together to create transport racks.
• Rubber-topped sloping bearing surfaces and resilient rubber perpendicular supports protect and retain loaded materials.
• Bearing surfaces are positioned low in the A-frame to minimize lift height while leaving clearance for forklift forks and pallet jacks.
• Lightweight construction with high structural strength; racks are quickly assembled and disassembled.
• Design reduces to a compact empty shipping size by one worker using one tool.
• Simple assembly from few parts reduces assembly/disassembly time and operational complexity.
• Compacted racks are light enough to be handled into vans or trucks for return shipping.

Options

• Clip-on safety posts to secure large sheets (stone, glass) against the A-frame during movement on factory or construction floors.
• Quick-fit wheels and handles using the same bolts and tools as frame assembly.
• Available types: WR1270-1200, WR1270-1600, WR1270-2000 and pocket models WRP1270-1200, WRP1270-1600, WRP1270-2000.

Specifications (tabular)
WR1270-1200
Metric / Imperial
Working load limit: 1000 kg / 2204 lb
Width of each side: 230 mm / 9"
Weight: 48 kg / 106 lb
Dimension: L.1200 x W.750 x H.1625 mm / L.47.2" x W.29.5" x H.64"

WR1270-1600
Metric / Imperial
Working load limit: 1000 kg / 2204 lb
Width of each side: 230 mm / 9"
Weight: 65 kg / 143 lb
Dimension: L.1600 x W.750 x H.1625 mm / L.63" x W.29.5" x H.64"

WR1270-2000
Metric / Imperial
Working load limit: 1200 kg / 2645 lb
Width of each side: 230 mm / 9"
Weight: 75 kg / 165 lb
Dimension: L.2000 x W.750 x H.1625 mm / L.78.7" x W.29.5" x H.64"

Patent status
Patent Pending

Technical specifications

• Model WR1270-1200 — Working load limit 1000 kg; Width each side 230 mm; Weight 48 kg; Dimension L1200 x W750 x H1625 mm.
• Model WR1270-1600 — Working load limit 1000 kg; Width each side 230 mm; Weight 65 kg; Dimension L1600 x W750 x H1625 mm.
• Model WR1270-2000 — Working load limit 1200 kg; Width each side 230 mm; Weight 75 kg; Dimension L2000 x W750 x H1625 mm.
• Construction: modular A-frame panels from 2 mm sheet metal with rivet nuts, U-shaped tie bar and self-aligning bolts; rubber-topped bearing surfaces and resilient rubber perpendicular supports.
• Assembly: designed for quick assembly/disassembly with a single tool; compactable for efficient shipping and handling.
• Options: clip-on safety posts; quick-fit wheels and handles; multiple size variants including pocket models.
