Steel storage rack SAF02-HD

General

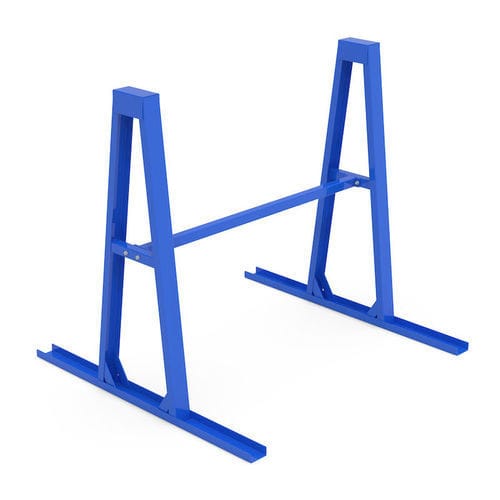

The Aardwolf SAF02-HD Stone A-frame is a heavy-duty storage and transport rack designed to support natural and engineered stone slabs. The base features a 4" x 2" C-channel that accepts timber gluts if required. A steel cross member and fastening kit are included for on-site assembly.

Features

• Stores stone slabs on both sides to maximise storage density.
• Heavy-duty steel construction suitable for outdoor and workshop use.
• Full-slab design for stable vertical support of large panels.
• Supplied and used as a set.
• Durable powder-coat finish for weather protection.
• Drain holes in the base rail reduce standing water and corrosion risk.
• Working load limit (WLL): 15,000 kg (33,069 lb).
• Net weight: 78 kg (172 lb); Gross weight: 83 kg (183 lb).
• Packaging dimensions: L 1830 x W 220 x H 1960 mm (72" x 8.7" x 77.2").

Optional extra
Timber gluts for insertion into the base C-channel to protect slab edges and distribute load.

Technical specifications

• Product code: SAF02-HD
• Product name: Stone A-frame
• Manufacturer / Brand: Aardwolf
• Application: Support and store natural and engineered stone slabs
• Base channel: 4" x 2" C-channel (accepts timber gluts)
• Includes: Steel cross member and fasteners
• Working load limit (WLL): 15,000 kg (33,069 lb)
• Net weight: 78 kg (172 lb)
• Gross weight: 83 kg (183 lb)
• Packaging dimensions: 1830 x 220 x 1960 mm (72" x 8.7" x 77.2")
• Finish: Powder-coat for weather protection
• Design notes: Holes in base rail to drain water; full-slab design; sold as a set; stores slabs on both sides
• Optional extras: Timber gluts for base
