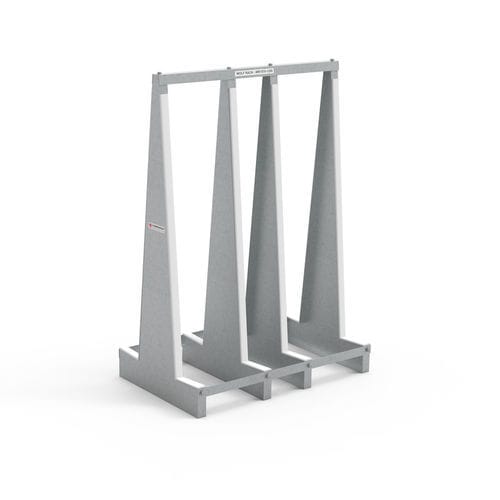

Materials handling transport rack WR1570-1200

transporthandlingfor pallet trucks

General The Wolf Rack is an A-frame transport rack series designed for safe storage and movement of large sheets and long items. Frames are formed from 2 mm sheet metal with open A-frame construction. The tops of the A-frames contain rivet nuts and are bolted into a U-shaped tie bar with self-aligning bolts; load bars fit into slots at the base and are fastened with self-aligning bolts into rivet nuts permanently fixed to the frame. This creates a rigid, easily assembled structure requiring only one tool and no special skills.

Features

• Modular A-frame design manufactured from 2 mm sheet metal allowing scalable rack lengths.
• Rubber-topped bearing surfaces slope inward; perpendicular supports are cushioned to protect and retain loaded materials.
• Low bearing surface position minimizes lift height while leaving space for forklift forks and pallet jacks.
• Lightweight yet strong construction for quick assembly/disassembly and easy handling.
• Collapsible to a compact transport size by one worker using a single tool.

Options

• Clip-on safety posts to secure large panels (stone, glass) during movement on concrete floors and construction sites.
• Quick-fit wheels and handles that use the same assembly bolts and tools for rapid conversion.
• Available models include several Wolf Rack types such as WR1270-1200, WR1270-1600, WR1270-2000 and Wolf Rack Pocket models WRP1270-1200, WRP1270-1600, WRP1270-2000; Aardwolf supplies the range.

Specifications
WR1570-1200:
Metric | Imperial
Working load limit: 1000 kg | 2204 lb
Width of each side: 204 mm | 8"
Weight: 50 kg | 110 lb
Dimension: - | -

WR1570-1600:
Metric | Imperial
Working load limit: 1000 kg | 2204 lb
Width of each side: 204 mm | 8"
Weight: 70 kg | 154 lb
Dimension: - | -

WR1570-2000:
Metric | Imperial
Working load limit: 1200 kg | 2645 lb
Width of each side: 204 mm | 8"
Weight: 82 kg | 181 lb
Dimension: - | -

WR1570-3000:
Metric | Imperial
Working load limit: 1200 kg | 2645 lb
Width of each side: 204 mm | 8"
Weight: 111 kg | 245 lb
Dimension: - | -

Patent Pending

Technical specifications

• Product code (example): WR1570-1200
• Working load limit (WR1570-1200): 1000 kg (2204 lb)
• Working load limit (WR1570-1600): 1000 kg (2204 lb)
• Working load limit (WR1570-2000): 1200 kg (2645 lb)
• Working load limit (WR1570-3000): 1200 kg (2645 lb)
• Width of each side (all models): 204 mm (8")
• Weights: WR1570-1200: 50 kg (110 lb); WR1570-1600: 70 kg (154 lb); WR1570-2000: 82 kg (181 lb); WR1570-3000: 111 kg (245 lb)
• Construction: A-frame structure manufactured from 2 mm sheet metal with rubber-topped bearing surfaces and self-aligning bolted connections for easy assembly and disassembly.
