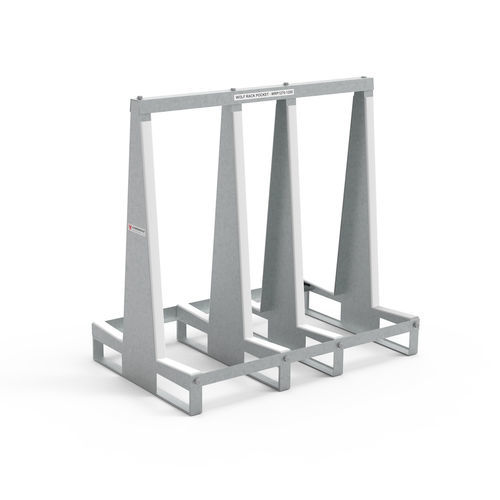

Materials handling transport rack WRP1000-1200

transportfor sheet metalwith corner posts

General
The Wolf Rack Pocket is a collapsible A-frame transport rack manufactured from 2 mm sheet metal. Individual A-frames feature open construction with rivet nuts at the top, bolted to a U-shaped tie bar using self-aligning bolts. Load bars engage slots at the base of each frame and are secured by self-aligning bolts screwed into rivet nuts fixed at the frame base. The design provides a rigid connection and enables assembly or disassembly with a single tool by one operator.

Key features

• Modular A-frame units formed from 2 mm sheet metal and bolted together.
• Rubber-topped bearing surfaces and resilient rubber on perpendicular supports to protect and retain loaded materials such as glass or stone sheets.
• Low bearing-surface height to minimize required lift while allowing forklift forks and pallet jacks to access the load.
• Lightweight when assembled and reducible to a compact empty shipping size for easy handling.
• Simple assembly from a small number of parts, reducing on-site assembly/disassembly time.

Options

• Clip-on safety posts to secure large panels during transport on factory floors or construction sites.
• Quick-fit wheels and handles using the same assembly bolts and tools.
• Available variants include WR1270-1200, WR1270-1600, WR1270-2000 and Wolf Rack Pocket models WRP1000-1200, WRP1000-1600, WRP1000-2000.

Specifications
WRP1000-1200:
Working load limit: 1000 kg / 2204 lb
Width of each side: 252 mm / 9.9 in
Weight: 48 kg / 106 lb

WRP1000-1600:
Working load limit: 1000 kg / 2204 lb
Width of each side: 252 mm / 9.9 in
Weight: 66 kg / 146 lb

WRP1000-2000:
Working load limit: 1200 kg / 2645 lb
Width of each side: 252 mm / 9.9 in
Weight: 78 kg / 172 lb

Technical data

• Construction: Modular A-frame structure in 2 mm sheet metal.
• Assembly: Frames bolted to a U-shaped tie bar; load bars fitted into base slots and secured with self-aligning bolts and rivet nuts; assembly with one tool.
• Protection: Rubber-topped bearing surfaces and resilient rubber on perpendicular supports.
• Loading: Low bearing height for minimal lift and forklift/pallet jack access.
• Transport/storage: Collapsible to compact empty shipping size; compacted units are light and man-handleable.
• Available variants: WRP1000-1200, WRP1000-1600, WRP1000-2000 and WR1270 series.
• Patent status: Patent pending.
