Drill attachment DSA07

General

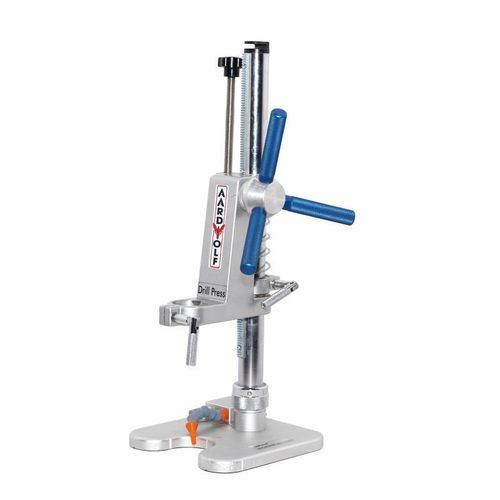

A Drill Stand with a Vacuum Base provides stable, repeatable positioning when hole location and orientation must be controlled precisely. The Aardwolf DSA07 drill stand is a lightweight, versatile stand with a powerful integrated vacuum base that enables instant set-up on smooth or rough flat surfaces without anchors or clamps. The vacuum base delivers excellent stability for precision drilling.

Features

• Vacuum application via compressed air, optional battery vacuum pump or electric vacuum pump
• Designed for precision drilling
• Sturdy 34 mm round column with a 290 mm long-toothed rack
• Integrated return spring and locking button for series drilling
• Adjustable scale ring for accurate drilling depth down to the millimetre, with cable holder
• Working height: 305 mm
• Drill support collar diameter: Ø 43 mm
• Powerful integrated vacuum base for instant installation

Note
The drill stand is supplied without drill.

Specifications

• Model: DSA07
• Brand: Aardwolf
• Drilling bore size: 60 mm / 2.4"
• Net weight: 6 kg / 13 lb
• Vacuum base dimensions: 200 x 205 mm / 7.9" x 8.1"
• Packaging dimensions: 580 x 310 x 240 mm / 22.8" x 12.2" x 9.4"
• Column diameter: 34 mm
• Long-toothed rack length: 290 mm
• Working height: 305 mm
• Drill support collar diameter: Ø 43 mm
• Vacuum application options: compressed air, optional battery vacuum pump, electric vacuum pump
