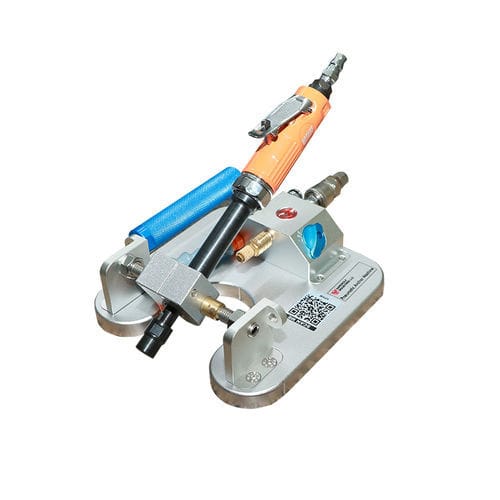

Grooving machine APAM

General
The Aardwolf Industries LLC Pneumatic Anchor Machine APAM is equipped with pneumatic grinders and a vacuum-powered base to cut T-slots in the rear of vanity tops or wall panels for installing anchor bolts used with under-counter sinks and architectural cladding systems. The base features two independently switchable vacuum zones permitting secure operation close to edges.

Features

• Industrial quick-couplers for air and water connections
• Combination port enabling vacuum generation via the built-in Venturi using compressed air
• Grinders accept any T-diamond bit with a 6 mm shank (collet 6 mm)
• Detachable water hose with ball valve and quick-coupler for local spraying
• Machine cuts in both push and pull directions
• Alignment indicators on the base for precise positioning
• Machined, anodized aluminum components with high water resistance
• Molded rubber vacuum base seal
• Operational speed noted in documentation: 30,000 RPM

Specifications
Metric — Imperial
Collet diameter: 6 mm — 1/4"
No load speed: 25,000 RPM
Vacuum base: -80 kPa
Net weight: 3.3 kg — 7.3 lbs
Gross weight: 5.2 kg — 11.5 lbs
Packaging dimensions: L 440 × W 340 × H 160 mm — 17 3/8" × 13 3/8" × 6 1/4"

Note
Portable water supply tank is available on request.

Technical characteristics

• Model / Product code: APAM
• Type: Pneumatic machine for cutting T-slots for anchor bolt installation
• Vacuum base: two switchable vacuum zones
• Connections: industrial quick-couplers for air and water
• Vacuum port: integrated Venturi vacuum via compressed air
• Compatibility: accepts T-diamond bits with 6 mm shank
• Cooling: detachable water hose with ball valve and quick-coupler
• Cutting direction: both push and pull
• Alignment indicators on base
• Materials: machined, anodized aluminum components
• Base seal: molded rubber
• Operational speed (documented): 30,000 RPM; no-load speed (spec): 25,000 RPM
• Vacuum: -80 kPa
• Net weight: 3.3 kg
• Gross weight: 5.2 kg
• Packaging dimensions: L 440 × W 340 × H 160 mm
