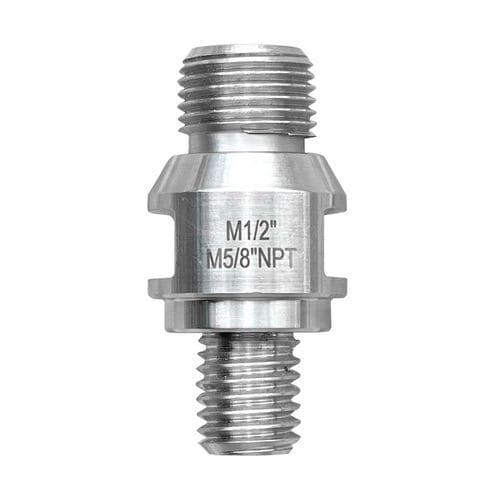

Threaded adapter WSDA03

maleinterfacestainless steel

General
The Aardwolf Water Swivel Adapter WSDA03 connects the Aardwolf Water Swivel WS03 (1/2" male thread) to tools with a male 5/8" thread. It is machined from stainless steel for precise fit and corrosion resistance.

Specifications
The WSDA03 converts the WS03 1/2" male swivel connection to a male 5/8" thread compatible with diamond core bits using a female 5/8" connector. This configuration is common in North America.

Related products

• WSDA01: fits Aardwolf Water Swivel WS01 (1/2" male thread); compatible with core bits with a 10 mm (0.4") spindle; the diamond core bit is secured by two small grub screws.
• WSDA02: fits Aardwolf Water Swivel WS02 (1/2" male thread) and adapts to a male 14 mm thread for diamond core bits with a female 14 mm connector (common in Europe).

Technical specifications

• Product code: WSDA03
• Fits: Aardwolf Water Swivel WS03
• Input connector: 1/2" male thread
• Output connector: male 5/8" thread (accepts female 5/8" connector)
• Accepts: diamond core bits with female 5/8" connector
• Material: machined stainless steel
• Region note: 5/8" female connector prevalent in North America
• Related adapters: WSDA01 (10 mm / 0.4" spindle), WSDA02 (female 14 mm connector)
