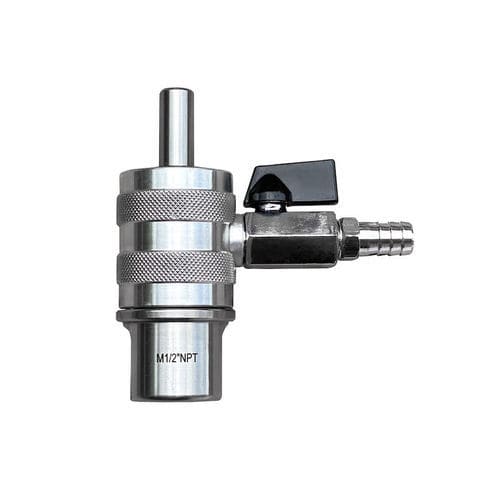

Stainless steel swivel WS01

Overview
Water swivel WS01 supplies water and other coolants to diamond core drills and the drilling zone. The unit features an aluminium housing, a stainless steel spindle, two precision ball bearings and an adjustable water flow. Adapters allow mounting on most drilling equipment with different threads and fittings.

Key features

• Supplies water and coolants directly to the drill bit and bore
• Aluminium housing with stainless steel spindle
• Two precision ball bearings for smooth rotation
• Adjustable water flow for controlled cooling
• Available in multiple thread types; optional adapters for compatibility

Specifications

• Product code: WS01
• Standard thread: F1/2
• Optional adapters: M1/2 - M5/8 NPT, M1/2 - M14
• Other models: WS02 (M14), WS03 (M5/8 NPT), WS04 (Φ10)
• Materials: Aluminium housing; stainless steel spindle
• Bearings: Two precision ball bearings

Applications & compatibility
Designed for diamond core drilling applications to cool the cutting face and evacuate slurry. Compatible with drill presses, hand-held coring tools and rig-mounted systems when fitted with the appropriate adapter.
