Stone grooving machine EAM

General

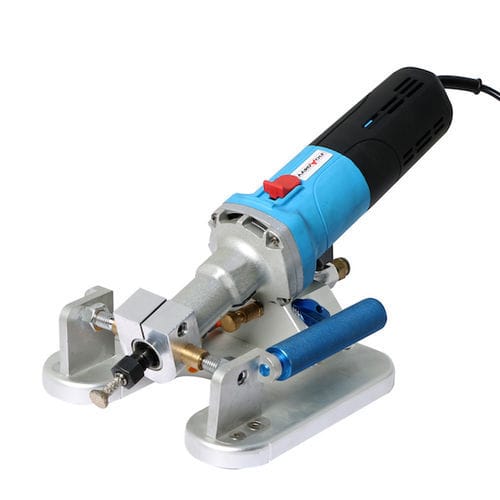

The Aardwolf Electric Anchor Machine (EAM) is a compact, precision tool for cutting T-slots in stone surfaces such as vanity tops and architectural cladding. These slots accommodate anchor bolts for under-mount sinks and panel fixings, enabling concealed mechanical anchoring.

Applications

• Under-mount sink anchoring in bathroom and kitchen countertops
• Architectural cladding and panel anchoring on natural and engineered stone
• On-site edge and partial-surface operations where full suction is not available

Features

• Dual vacuum options: built-in venturi (compressed air) or connection to an external vacuum pump
• Independent vacuum zones: two separately controlled suction areas for edge work and partial-surface grip
• Quick-connect fittings: industrial couplers for air and water
• T-bit compatibility: accepts T-type diamond bits, 6 mm (1/4") shank
• Detachable water hose: integrated valve and quick-disconnect for controlled coolant and dust suppression
• Bi-directional cutting: supports push and pull cutting actions
• Precise alignment: built-in alignment indicators for repeatable positioning
• Construction: machined, anodized aluminum with molded rubber vacuum seal

Note
Portable water supply tank available on request.

Specifications
Metric / Imperial
Net weight: 4 kg / 9 lb
Collet diameter: 6 mm / 1/4"
Includes Aardwolf 750W grinder with 1/4" (6 mm) collet
Rated voltage: 220 V, 50 Hz (default); 110 V, 60 Hz (U.S. market)
No-load speed: 30,000 RPM
Motor power: 750 W
Water connection: 1/4" PT thread
Air connection: 1/4" industrial coupler plug
Vacuum base: -80 kPa

Technical specifications

• Use: cutting T-slots in stone surfaces (vanity tops, under-mount sink anchors, architectural cladding)
• Vacuum base with two independently controlled suction zones
• Dual vacuum capability: venturi (compressed air) or external vacuum pump
• Supplied with 750W Aardwolf grinder; compatible with 6 mm (1/4") T-type diamond bits
• Collet: 6 mm (1/4")
• No-load speed: 30,000 RPM
• Voltage options: 220 V 50 Hz (standard); 110 V 60 Hz (U.S.)
• Quick-connect fittings for air and water; water hose thread 1/4" PT; air connection 1/4" industrial coupler
• Construction: machined anodized aluminum, molded rubber vacuum seal
• Vacuum performance: -80 kPa
