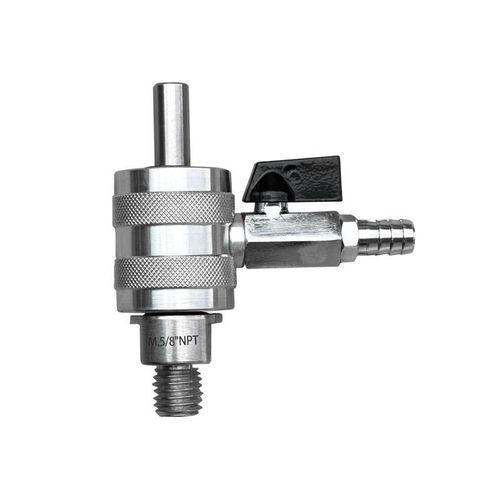

Stainless steel swivel WS03

General
Water swivels supply water and other coolants to diamond core drills and the drilling zone. These swivel adapters are compatible with most drilling equipment and are offered with several thread and mounting options. Construction includes an aluminum housing, a stainless steel spindle, two precision ball bearings and an adjustable water flow control.

Specifications

• WS01: F1/2; optional adapters: M1/2 → M5/8 NPT or M1/2 → M14
• WS02: Thread M14
• WS03: M5/8 NPT
• WS04: Φ10

Characteristics / Technical specifications

• Product code: WS03
• Application: Supplies water and other coolants to diamond core drills and the drilling zone
• Housing material: Aluminum
• Spindle material: Stainless steel
• Bearings: Two precision ball bearings
• Feature: Adjustable water flow
• Available threads and mountings: Various (see WS01–WS04 specifications)
