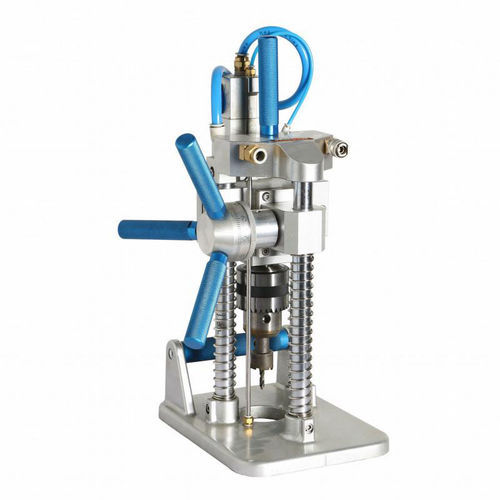

Hand drill APADM

General
The Aardwolf portable air drilling machine APADM is a lightweight aluminium-bodied unit designed for rapid, anchor-free mounting via an integrated vacuum base. It attaches quickly to smooth and rough flat surfaces and is suitable for vertical and horizontal drilling on concrete, stone, glass and metal.

Features

• Stepless speed regulation; maximum free speed 1,200 rpm
• Adjustable water feed via valve with nozzle from the chuck/base to cool the bit
• Drilling depth control for setting and displaying drilling depth
• Three-speed control switch for fast/slow feed selection
• Integrated vacuum base for instant mounting on flat surfaces

Applications

• On-site concrete and masonry drilling (vertical and horizontal)
• Glass and metal through-holes where magnetic bases are not applicable
• Renovation, façade works, installation of anchors and piping

Specifications (summary)
Metric - Imperial
Net weight: 10 kg - 22 lb
Gross weight: 14 kg - 31 lb
Packaging dimension: 260 x 260 x 535 mm - 10.2" x 10.2" x 21"
Max. free speed: 1,200 rpm
Max. drill bit length: 125 mm (4.9")
Vacuum base dimensions: 240 x 180 mm (9.4" x 7")
Drilling bore size: 50 mm (2")
Chuck diameter: 1 - 16 mm (0.03" - 0.6")
Product weight: 8.2 kg
Product dimension: 233 x 233 x 392 mm (9.2" x 9.2" x 15.4")
Working pressure: 6.3 kgf/cm2 (90 psi)
Air inlet thread: 1/4"
Hose size: 10 mm (0.4")
Air consumption: 0.56 m3/min (20 SCFM)
Sound pressure: 88 dBA

Technical specifications

• Model: APADM
• Body material: aluminium
• Max. free speed: 1,200 rpm
• Max. drill bit length: 125 mm
• Drilling bore size: 50 mm
• Vacuum base: 240 x 180 mm
• Working pressure: 6.3 kgf/cm2 (90 psi)
• Air inlet: 1/4"; hose: 10 mm
• Air consumption: 0.56 m3/min (20 SCFM)
• Sound pressure level: 88 dBA
