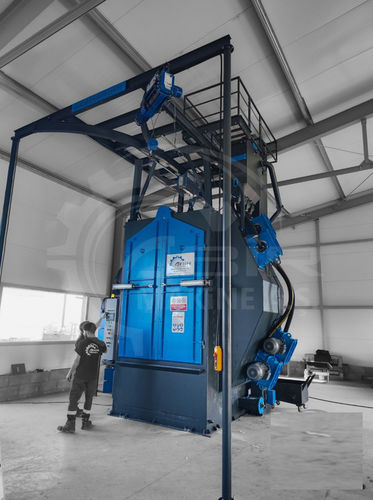

Hook shot blasting machine ASK series

for metalfor heat treatmentfor casting

Product description
The hook-type shot blasting machines are used for surface cleaning, pre-coating preparation and refurbishment of cast, pressed, heat-treated, forged, finished and semi-finished steel parts. They deliver multi-directional shot blasting and can process parts with irregular geometry and a wide range of sizes. Blasting durations are set via a digital timer according to part type and surface.

Customization and integration
Machines are engineered and manufactured to match part dimensions, weight and daily throughput. They can be supplied as continuous systems and integrated into production or coating lines.

Models (table)
Model | ASK-1 | ASK-2 | ASK-3 | ASK-4 | ASK-5 | ASK-6 | ASK-7 | ASK-8
Sandblasting width (mm) | ASK-1: 1000 | ASK-2: 1000 | ASK-3: 1500 | ASK-4: 1500 | ASK-5: 2000 | ASK-6: 2000 | ASK-7: 3000 | ASK-8: 4000
Sandblasting height (mm) | ASK-1: 800 | ASK-2: 1000 | ASK-3: 1200 | ASK-4: 1500 | ASK-5: 1500 | ASK-6: 2000 | ASK-7: 2000 | ASK-8: 2000

Technical specifications

• Type: Hook-type shot blasting (also called hook-type sandblasting)
• Applications: Surface cleaning, pre-coating preparation and refurbishment of cast, pressed, heat-treated, forged, finished and semi-finished steel parts
• Capabilities: Multi-directional shot blasting; suitable for irregular geometries and various part sizes
• Control: Blasting cycles adjustable by digital timer
• Customization: Engineered per part size, weight and daily throughput; available as continuous system
• Integration: Can be integrated into production or coating lines
• Available models: ASK-1 to ASK-8
• Typical widths and heights by model: see table above
