Pressure blast room KO series

manual

Overview
Shot blasting rooms are engineered to fit the dimensions of the parts to be processed. A dedicated pneumatic sweeper located on the chamber floor automatically collects fallen steel shot and transfers it into a particle carrier system for sieving, cleaning and storage, eliminating the need for manual scraping of the chamber bottom.

Construction

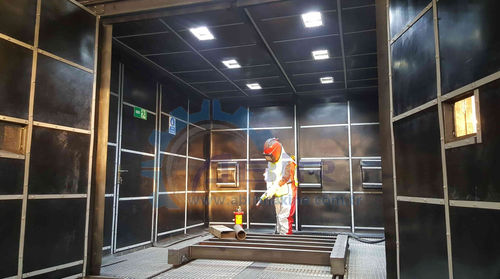

The chamber structure is fabricated in metal with internal surfaces lined with abrasion‑resistant rubber. Walls are insulated to limit sound and heat transmission. Each blasting chamber is designed and manufactured to customer‑specified sizes and layout requirements.

Models / Dimensions (Width x Length x Height) (mm)
KO-1: 3x3x3
KO-2: 4x6x4
KO-3: 5x9x5
KO-4: 5x12x5
KO-5: 6x15x6

Technical specifications

• Designed to match part size and production requirements
• Special pneumatic sweeper removes need for manual scraping of chamber floor
• Automatic collection and transfer of steel particles to carrier system for sieving, cleaning and storage
• Metal chamber construction for structural strength
• Internal surfaces coated with abrasion‑resistant rubber
• Insulated walls to reduce noise and heat transmission
• Custom manufacturing to specified dimensions and layouts
• Available models: KO-1, KO-2, KO-3, KO-4, KO-5 with stated dimensions
