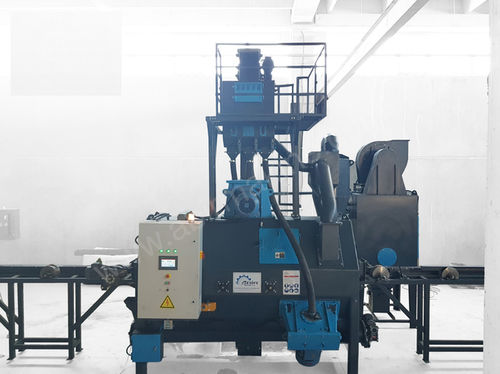

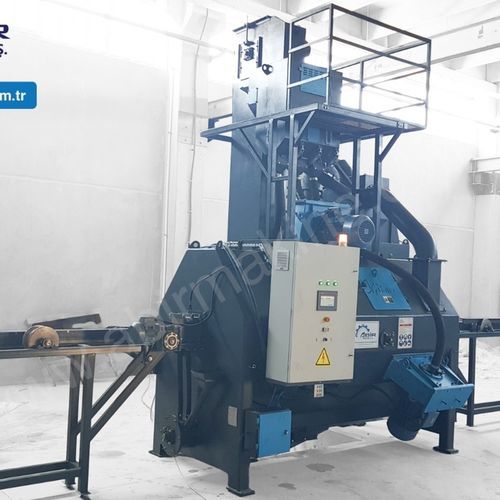

Turbine shot blasting machine KM series

for wirefor surface cleaningcontinuous

Product description
The wire coil shot blasting machine is designed for surface cleaning of continuous materials such as wire and coil. The wire passes through the machine and is sandblasted by steel granules projected by turbines arranged in a sandwich configuration to expose the entire circumference to blasting. Turbine count and arrangement are selected according to daily throughput and production requirements to ensure uniform surface preparation.

Applications

• Surface cleaning and scale removal on continuous wire and coiled materials
• Surface preparation prior to coating, plating or subsequent forming operations
• Inline integration into continuous production lines

Models (from product table)

• KM-1
• KM-2
• KM-3
• KM-4

Gallery

• Multiple product images are provided in the product gallery on the page (image files shown in gallery)

Technical specifications

• Application: Surface cleaning of continuous materials (wire / coil)
• Operation principle: Wire passes through the machine and is sandblasted by turbines using steel granules
• Turbine arrangement: Turbines sandwich the wire to expose the whole surface to blasting
• Turbine count: Determined according to the daily amount of sandblasted workpieces (configured per production requirement)
• Available models: KM-1, KM-2, KM-3, KM-4
