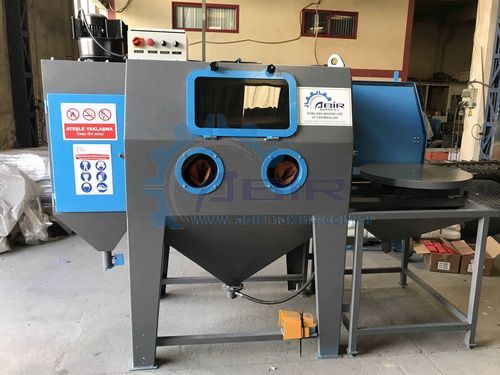

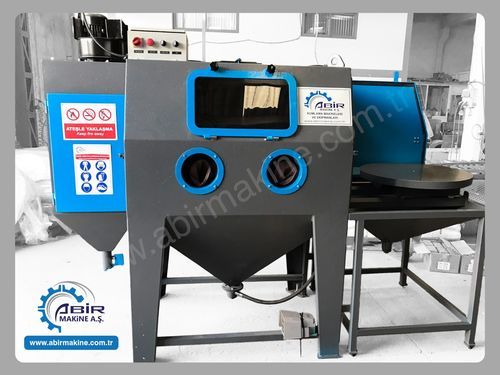

Manual blast cabinet AKM series

suctionwith turntable

Product description

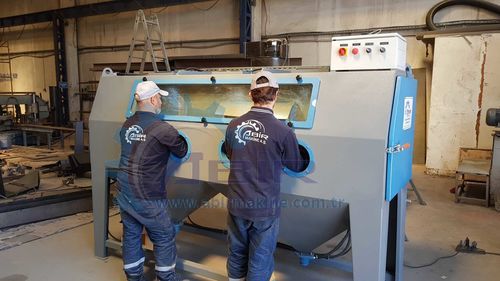

The operator performs abrasive blasting through sight-glass windows and integrated gloves at the arm inlets. The blasting nozzle projects an air-abrasive mixture onto the workpiece surface for surface treatment. The compressor is installed outside the cabinet; dust-laden air generated inside the cabin is extracted and cleaned by a filter-fan unit. Optional handling accessories such as a turntable and a railed car can be added for heavy or complex parts.

Models
Model: AKM-1000 | AKM-1200 | AKM-1500 | AKM-1800 | AKM-2000
Cabin dimensions (WxLxH) (mm): AKM-1000: 800x1000x800 | AKM-1200: 900x1200x800 | AKM-1500: 1000x1500x1000 | AKM-1800: 1300x1800x1300 | AKM-2000: 1000x2000x1000

Gallery

• Multiple product images available in the gallery.

Technical specifications

• Operation via sight-glass windows and integrated gloves
• Abrasive blasting by spraying an air-abrasive mixture from the blasting nozzle onto the workpiece
• Compressor located outside the cabinet to reduce in-cabinet contamination and noise
• Dusty air extracted and cleaned by a filter-fan unit
• Optional accessories: turntable and railed car for part handling
• Available models and cabin dimensions (WxLxH) in mm: AKM-1000: 800x1000x800; AKM-1200: 900x1200x800; AKM-1500: 1000x1500x1000; AKM-1800: 1300x1800x1300; AKM-2000: 1000x2000x1000
