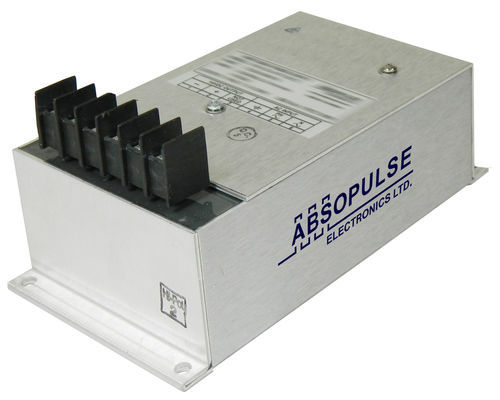

Encapsulated power supply PWI 100-P99L series

AC/DCsingle-outputswitching

The PWI 100-P99L Series of fully encapsulated, rugged, industrial quality AC-DC power supply uses field-proven technology to generate 100W output power. Suitable for operation in transportation, oil & gas, mining, industrial automation, utility and other extreme environments. Key Specifications • 100W Fully encapsulated industrial AC-DC power supply; • Universal input: 95Vac-264Vac. DC-input also available; • Output options: 12Vdc, 24Vdc, 48Vdc or custom; • -40°C to +70°C cold plate temperature range; • Full encapsulation with thermally conductive silicon potting compound with UL94V-0 flammability rating; • Immune to shock, vibration, moisture and environmental contaminants; • EMI: EN 55032 Class A with margins. Class B on request; • Standards: designed to meet EN 62368-1 and corresponding UL and CSA standards • P99L chassis for 100W version: 182 x 58 x 157 mm
