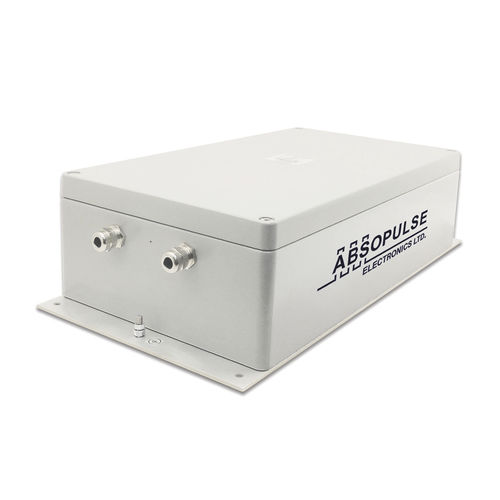

Power supply with power factor correction (PFC) PFC 319-D4 (P66)

AC/DCclosed framefor telecom applications

ABSOPULSE Electronics PFC 319-D4 Series of IP66-rated AC-DC power supplies with active power factor correction (PFC) deliver up to 500W continuous output power. They use active power factor correction to convert a universal ac-input voltage to 12Vdc, 24Vdc, 48Vdc or 125Vdc. Custom input/output voltages available on request. An optional built-in redundancy diode allows for parallel and N+1 operation. The power supplies are suitable for use in transportation, heavy industry, power generation and distribution, telecom, mining, marine and other severe environments. Key Specifications • - 500W continuous output power; • - Active power factor correction (PFC); • - Input: 95V to 264Vac universal; • - Output: 12Vdc, 24Vdc, 48Vdc, 125Vdc or custom; • - Installed in IP66-rated die cast aluminium packages; • - Protected from the ingress of water, fog, sand, metal dust, dust, oil, insects; • - Internal boards ruggedized and conformal coated; • - Operating temperature -25°C to +50°C; • - Cooling: natural convection and conduction; • - EMI: EN55032 Class A with wide margins, Class B on request; • - IP66-rated enclosure: 230 x 113 x 448 mm (H x W x D).
