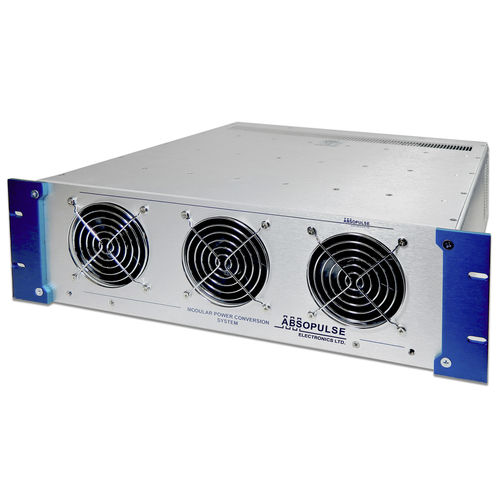

3U power supply PFH 5K-A3P/XX-3U7

AC/DC3-phasefor industrial applications

ABSOPULSE Electronics’ PFH 5K-A3P/XX-3U7 series AC-DC Power Supplies with 3-phase active PFC-input are designed for heavy-duty 5kW industrial applications. The units operate from a three-phase input of 208Vac (197-264Vac operating range) and deliver any single output from 24Vdc to 400Vdc. A similar version that operates from 400Vac 3-phase sources is also available. Efficiency is typically 84% at full load, depending on the required input/output configuration. Several PFH 5K-A3P/XX-3U7 power supplies can be configured in parallel to create a 10kW, 15kW, or higher DC-power solution. Key Specifications • - 5kW, 10kW, 15kW or higher; • - Input: 3-phase 208Vac (197-264Vac ) or custom; • - Active PFC-Input; • - Output: Any voltage 24V … 400Vdc; • - EMI: EN55032 Class A with margins; • - 0°C to +50°C operating temperature range – no derating; • - Cooling by high quality internal fans; • - Designed to meet EN/UL60950-1 and equivalent safety standards; • - Ruggedized: resistance to shock & vibration (IEC 61373 Cat 1 A&B); • - MTBF 140,000 hours at 45°C (fans excluded); • - Full electronic protection; • - 3U7/19 rack mount: 132 x 483 x 407mm, (3U) 5.2” x 19” x 16”; • - 3U7 chassis-mount: 132 x 432 x 407 mm, (3U) 5.2″ x 17″ x 16″.
