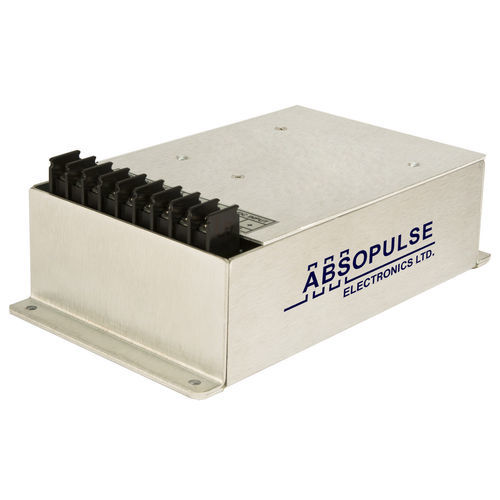

Encapsulated power supply PWI 150-P59
AC/DCfilteredsingle-output

Encapsulated power supply - PWI 150-P59 - ABSOPULSE Electronics Ltd. - AC/DC / filtered / single-output
Encapsulated power supply - PWI 150-P59 - ABSOPULSE Electronics Ltd. - AC/DC / filtered / single-output
Encapsulated power supply - PWI 150-P59 - ABSOPULSE Electronics Ltd. - AC/DC / filtered / single-output - image - 2
Add to favorites
Compare this product
Go to the ABSOPULSE Electronics Ltd. website for more information

Characteristics

Mounting / format
encapsulated
Type
AC/DC
Output
filtered, single-output, regulated
Technology
switching
Protection
with short-circuit protection, with current limiting
Certifications
UL, CE
Applications
for industrial applications
Other characteristics
compact, convection-cooled, high I/O isolation, robust
Input voltage

Min.: 95 V

Max.: 264 V

Output voltage

Min.: 12 V

Max.: 125 V

Power

Min.: 100 W
(0.14 hp)

Max.: 150 W
(0.2 hp)

Description

The PWI 150-P59 series of fully encapsulated AC-DC power supplies use field-proven topology to deliver up to 150W output power. The power supplies deliver a single regulated output of 12Vdc, 24Vdc, 48Vdc, 125Vdc or custom, and accept a universal input of 95Vac-264Vac. DC-input options are available on request. Key Specifications - 150W fully encapsulated power supply - Universal input: 95Vac-264Vac - Output options: 12Vdc, 24Vdc, 48Vdc, 125Vdc or custom - -40°C to +70°C cold plate temperature range without derating - Full encapsulation with thermally conductive silicon potting compound with UL94V-0 flammability rating - Immunity to shock, vibration, moisture, and environmental contaminants - Operation in transportation, oil & gas, mining, industrial automation, utility, and other extreme environments - EMI: EN 55032 Class A with margins - Standards: designed to meet EN 62368-1 and corresponding UL and CSA standards - P59 chassis for 150W version: 108 x 68 x 191 mm
