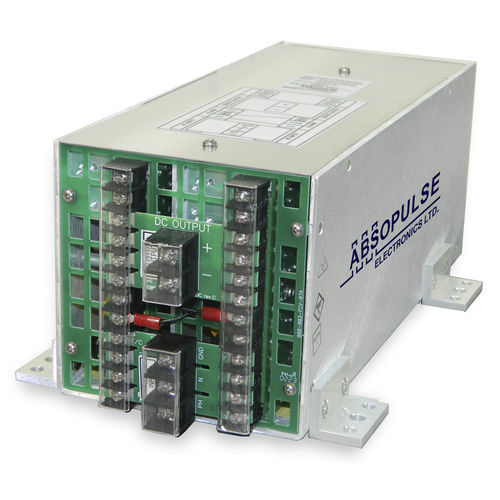

Power supply for industrial applications PFC 2K-U5512L

AC/DCswitchingwith short-circuit protection

The PFC 2K-U5512L is a rugged, industrial quality AC-DC power supply designed for industrial applications requiring redundant operation and active power factor correction (PFC). It delivers up to 2000W continuous output power and features a universal input (95V to 264Vac) with active PFC, converting to various output voltages including 12V/160A, 24V/80A, 28V/70A, 48V/40A, 54V/36A, or 125V/16A. Custom input/output voltages are available. Application Environments: Suitable for industrial automation, materials handling, utilities, power generation & distribution, telecommunications, mining, and other heavy-duty applications. Technical Specifications / Features: - Model: PFC 2K-U5512L - Output Power: 2000W continuous - Input Voltage: 95V to 264Vac, 47–63Hz - Output Voltages: 12V/160A, 24V/80A, 28V/70A, 48V/40A, 54V/36A, 125V/16A - Active Power Factor Correction: Yes, PFC rating 0.97 at full load - Compliance: EN 61000-3-2, EN 61000-3-12, EN 62368-1, UL, CSA - EMI: EN 55032 Class A (Class B on request) - Isolation: 4300Vdc input/output - Operating Temperature: 0°C to +50°C (wider range on request) - Cooling: Built-in fan and conduction via baseplate - Connector Configuration: Terminal block for input and output. M6 stud for chassis ground. - Protection: Inrush current limiting, short-circuit, thermal shutdown, output over-voltage - Chassis: U5512L, 127 x 127 x 305 mm (W x H x D)
